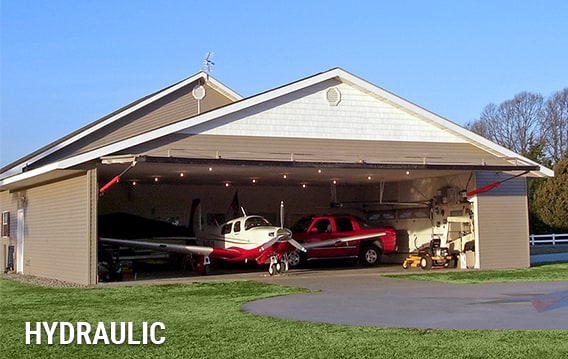

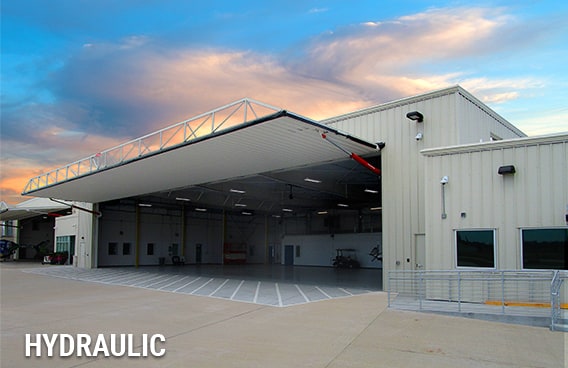

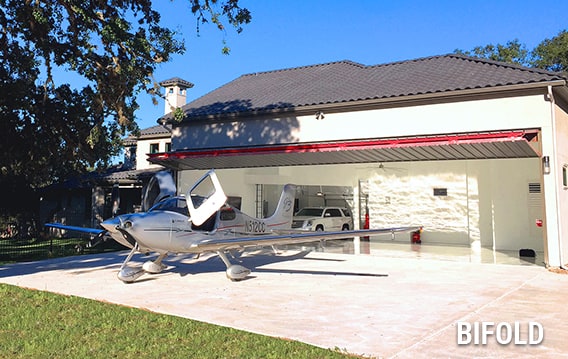

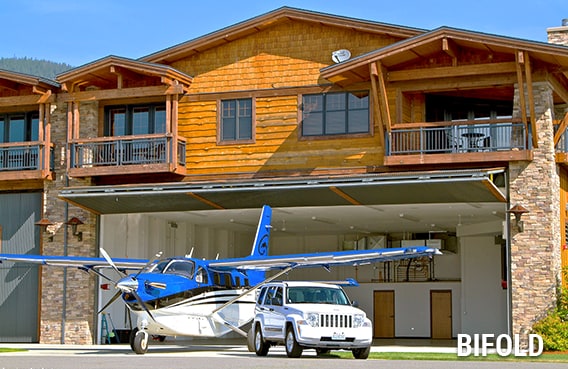

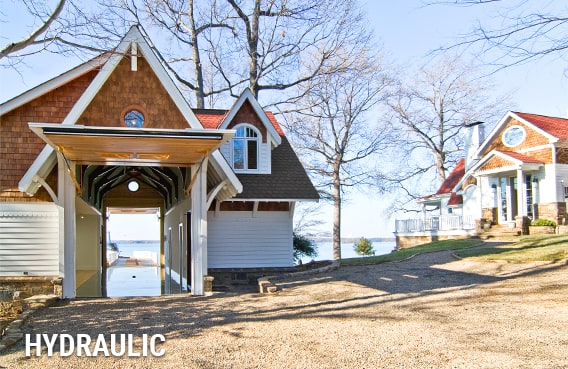

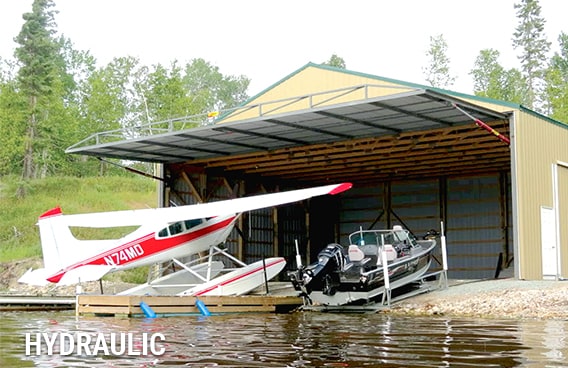

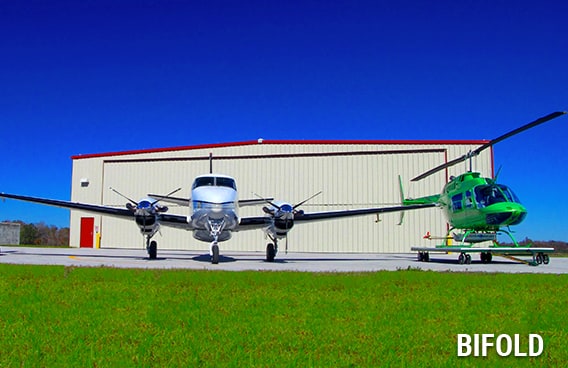

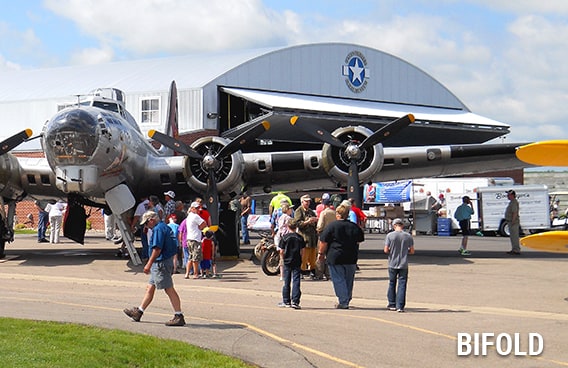

Schweiss Manufactures Hydraulic and Bifold Doors

Customer Comment About Schweiss Doors

"If I get a phone call from a gentleman who's thinking about building a hangar, I ask him: 'What are your door
needs, what are you looking for? Let's talk about the best products on the market.' The first words out of my
mouth are always Schweiss. The second words out of my mouth are Schweiss, because we start talking
about the hydraulic door, then we go to the bifold. Nothing beats the strap system, period. I've got a little bit
of engineering background; the liftstraps are bulletproof. The safety and reliability of them, the fact that
they are effectively maintenance-free as long as somebody doesn't cut them or expose them to harsh
chemicals; it's a phenomenal way to go."

- Oscar Stout, President
Hangar Rental, Texas

Select from Manufacturer List Below...

A

• Acrolite

• Adam

• Aerisoatuake

• Aero East Europe

• Aerocopter Ltd.

• Aeronca

• Agusta helicopter

• Air Tractor

• Airbus Industries

• Aircoupe-AL

• AMD Alarus

• American General

• Angel Aircraft Corp.

• Antonov

• Arctic Aircraft

• ATEC

• ATR

• Avia

• Ayres-Thrush

B

• Beagle

• Bede Aviation

• Beech

• Beech Jet

• Beechcraft

• Bell Aircraft

• Bell Helicopters

• Bellanca

• Bellanca, Citabria

• Boeing

• Bolkow

• Bombadier

• Bonanza

• Brantly helicopters

• Bristell

• British AER

• British Aerospace

• Britten Norman

• Bucker

C

• Canadair CH

• Carbon Cub SS / CubCrafters

• Carbon Cub/CubCrafters

• CASA

• Cassutt

• Cerva

• Cessna

• Champion

• Cirrus

• Commander

• Consolidated

• Convair

• Corsair

• Corvus

• Culver

D

• Daher Aircraft Co.

• Dassault Falcon

• De Havilland

• Diamond

• Dornier

• Douglas

E

• Eagle Aircraft

• Eclipse Aerospace One Aviation

• Embraer

• Enstrom helicopters

• Epic Aircraft

• Ercoupe

• Eurocopter Helicopters

• Eurofighter

• Evektor

• Excalibur (Formerly Swearingen)

• Excalibur Ultralight kit planes

• Extra

F

• Fairchild

• Fairchild Hiller

• Fairchild Swearingen

• Fairchild-Dornier

F (cont.)

• Falcon

• Fisher

• Flaris Very Light Jet

• Fleet

• Flight Design

• Fokker

• Found

• Funk

G

• GAF

• GAF Nomad

• Gates

• Gates Learjet

• Gippsland

• Glasair

• Gobosh

• Grob Aircraft

• Grumman

• Gulfstream

H

• Handley-Page

• Harmon

• Helio Aircraft Company

• HFB

• Higher Class Aviation

• Hiller helicopters

• Honda

• Howard Aircraft Corp.

• Hughes

• Husky

I

• IAR

• ICON

• Ikarus

• Interstate

• Israel

• Israel Aircraft Industries (IAI)

J

• Jabiru

• Just Aircraft

K

• Kawasaki

• Kitfox

L

• Lake

• Lancair

• Let Kunovice

• Liberty

• Lockheed

• Luscombe

M

• Magnaghi Aeronautica

• Magnus

• Marquart

• Martin

• Maule

• McDonnell Douglas

• McDonnell-Douglas

• MD Helicopters

• Messerschmitt

• Meyers

• Micco

• Mitsubishi

• Mooney

• Murphy

N

• Navion

• NH Industries Helicopters

• Noorduyn Aviation

• Nord

• North American

• Northrop

P

• Pacific Aerospace

• Paradise

• Partenavia

• Peterson

• Piaggio

• Pilatus

• Piper

• Pipistrel

P (cont.)

• Pitts

• Porterfield

• PZL

Q

• Quest Aircraft

R

• Rainbow Aircraft

• Rallye

• Rans

• Raytheon

• Rearwin

• Remos

• Republic

• Robinson helicopters

• Rockwell

• RotorWay helicopters

• RotorWay International Helicopters

• Rutan Aircraft

• Ryan

S

• SAAB

• Sabreliner

• Safari Helicopters

• Schweizer Helicopters

• Schweizer/Hughes helicopters

• Scottish Aviation

• Scout Aero Helicopters

• Shark.Aero

• Shorts

• SIAI- Marchetti

• Sikorsky aircraft

• Sikorsky helicopters

• Slingsby

• Socata

• Soloy

• Sonex

• Sorrell

• Spartan

• Spectrum Very Light Jet

• Sportcruiser

S (cont.)

• Stampe-Vertongen

• Stearman

• Steen Aero Lab

• StingSport

• Stinson

• Stits

• Stolp

• Supermarine

• Swearingen

• Swift

• Symphony

T

• Taylorcraft

• Team Tango

• Tecnam

• Temco

• Thorp

V

• Vans

• Varga

• Velocity Aircraft

• Vulcanair

• Vultee

W

• Waco

• Wassmer

• Weatherly

• Westwind

• White Lightning Aircraft Corp.

• Wing Derringer

• Wren

X

• X-Air

Y

• YAK (Yakovlev)

Z

• Zenair

• Zenith

• Zlin

• Zodiac

Aircraft Size Chart

The aircraft size chart information listed below was carefully compiled but is not guaranteed to be correct. Your reliance on this aircraft size information is at your own risk. Schweiss Doors will not accept responsibility for errors or omissions or their consequences.

Acrolite

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Light Sport Biplane	20.2'	6'	17'

Adam

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
A500	44'	9.7'	37.6'
A700	44'	9.7'	40.9'

Aerisoatuake

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
330 PUMA	51' 1"	16' 1"	61' 5"
350 ECUREVIL	35' 1"	10' 1"	42' 8"
365 DAUPHIN	39'	13'	44'
MOONEY TBM 700	39' 11"	13' 1"	34' 1"
SN 601 CORVETTE	42' 3"	13' 11"	45' 5"
SN 601 Corvette	42.3'	13.11'	45.5'
SOCATA TRINDAD TB-20	32' 1"	9' 5"	25' 4"
WESTLAND 341 GAZELL	34' 5"	10' 2"	39'

Aero East Europe

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Sila 450 C	31'	7.8'	21.2'
Sila 750 C	30.10'	7.1'	21.2'

Aerocopter Ltd.

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
AK1-3 Helicopter	22.4'	7.4'	26.5'

Aeronca

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
11 CC SUPER CHIEF	36' 0"	8' 8"	20' 8"
11AC CHIEF	36' 0"	6' 10"	20' 10"
15 AC SEDAN	37' 6"	10' 4"	25' 3"
50 Chief	35.7'	6.3'	21'
50C Chief	36'	6.3'	21'
65C Chief	36'	9'	21.1'
65CA Super Chief	36'	6.7'	21'
7 CCM	35' 0"	8' 8"	21' 6"
7 CCM Champ	35' 0"	8' 7"	21' 5"
7AC Champion	35'	?	21.6'
7DC CHAMP	35' 2"	7'	21' 6"
Arrow	30'	?	19.9'
C-1 Cadet	29'	?	20'
C-2	36'	7.6'	20'
C-3	36'	7.10'	20'
Champion	35.1'	?	21.5'
K	36'	6.3'	20'
L	35.7'	?	6.86'
L-16	35'	?	21.5'
L-16B	35'	7'	21.6'
L-3	35'	?	21.8'
L-3C	35'	9.1'	21.10'
LC	36'	7'	22.6'

Agusta helicopter

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
A129 Mangusta	39.1'	11'	40.3'
AW109	36.1'	11.6'	37.7'
AW119Kx Koala	35.6'	11.10'	42.5'
AW139	45.3'	16.4'	54.8'
AW169	39.9'	14.9'	48.1'
AW189	47.11'	16.7'	57.9'

Air Tractor

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
401B	51'	10.11'	27.4'
502XP	?	?	?
802F Fire Boss	59.2'	13'	37.5'
AT 401	49.125'	8.6'	27'
AT-300	45'	8.6'	27'
AT-402	49' 2"	11' 2"	30' 7"
AT-402A/402B	51' 0"	9' 6"	30' 7"
AT-502	52' 0"	10' 3"	33' 2"
AT-502B	52' 0"	10' 3"	33' 2"
AT-504	52'	10.3'	33.2'
AT-602	56' 0"	11' 0"	33' 6"
AT-802 / 802A	59' 3"	11' 0"	35' 8"
AT-802F	59' 3"	11' 3"	37' 6"

Airbus Industries

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
A300	147' 2"	54' 6"	177' 3"
A300-600R & 600F	147.1'	54.7'	177.4'
A310-200 & A310-300	144'	51.10'	153.1'
A318	111.11'	41.2 (Tail)	103.2'
A320
A320-200	111' 10"	38' 7"	123'
A330-200	41,37'	57'	192.98'
A330-300	41.37'	55'	208.89'
A340-200	197.83'	55.86'	194.85'
A340-300	197.83'	55.72'	208.96'
A340-500	208.17'	57.51'	222.87'
A340-600	208.17'	58.84'	247.24'
A350-1000	64.75 m	17.08 m	73.79 m
A350-900	64.75m	18.27m	66.8m
A380-8	261.8'	79'	238.7'
AS365 N3 HELICOPTER	39.2'	13.4'	45.1'
EC135 HELICOPTER	33.6'	11.6'	33.6'
EC175 helicopter	48.56'	17.52'	59.25'
H160 helicopter	39.4'	13.1'	45.11'

Aircoupe-AL

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
415-G	30' 0"	5' 6"	20' 3"
A-2	30' 0"	5' 7"	20' 4"
F-1	30' 0"	6' 3"	20' 0"

AMD Alarus

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Alarus/CH 2000	28.10'	6.10'	23'

American General

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
AA-1A	24.45'	6.8'	19.24'
AA-2 Patriot	30'	?	23.3'
AG-5B Tiger	31.6'	8'	22'
BD-1	23'	6.3.5'	18.6'

Angel Aircraft Corp.

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
AAC Angel Model 44	39.11.5'	11.6'	33.6'

Antonov

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
An-10A	124.8'	32.1.75'	111.6.5'
An-140	80.5'	27'	74.2'
An-148-100A, 100B & 100E	94.10'	26.10'	95.7'
An-2	59.8'	13'	40.8'
An-225 "Mriya"	290'	59' 5"	275' 7"
An-24	95.10'	27.4'	77.2'
An-26	96.2'	28.2'	78.1'
An-28	72.2'	15.1'	42.6'
An-3T	59.8'	13.11'	45.11'
An-72	104.7.5'	28.4.5'	92.1'

Arctic Aircraft

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Arctic Tern	36.8'	7'	23'

ATEC

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
122 Zephyr 2000	31.6'	6.56'	20.3'
212 Solo	24.6'	5.08'	17.06'
321 Faeta	31.6'	6.88'	20.5'
322 Faeta LS	31.5'	6.5'	20.3'
Omsider Amphibian	36'	6.56'	22.3'

ATR

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
ATR 42-300 / 400/ 500/600	80.7'	24.11'	74.5'
ATR 72-600	88.9'	25.1'	89.2'

Avia

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
B-135	35.7'	5.3'	27.11'
B-534 IV	30.10'	10.4'	26.7'
S-199	32.6'	8.6'	29.4'

Ayres-Thrush

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
510G	47.6'	9.6'	33.11'
510GR	47.6'	9.4'	32.10'
510P	47.6'	9.4'	32.4''
550P	47.6'	10'	32.4'
710P	54'	10.4'	35.5'
S-2D AG COMMANDER	44' 3"	8' 8"	29' 3"
S-2R-1820/51031.5	44' 6"	9 8"	31' 6"
S-2R-600/PZL	44' 4"	9' 2"	29' 4"
S-2R-600/Thrush (69 Lgt. 28'4")	44' 4"	9' 2"	29' 4"
S-2R-800/THRUSH	44' 4"	9' 2"	29' 4"
S-2R-T34-TURBO	44' 6"	9 3"	33 0"
S-R2 1820/510	44' 5"	9'7"	31'6"
S2R-T Turbo Thrush	44.3'	9.2'	32.8'

Beagle

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
A-61 Terrier	36.9'	?	23.3'
A.109	36.4'	10'	26.4'
Airedale	36.3'	?	26.3'
Auster D.6	36'	?	?
B.206	45.8'	?	33.6'
B.206 Series 2	45.9.5'	11.4'	33.8'
B206 Series 2	45.9.5'	11.4'	33.8'
B206-S TURBO CHG TWIN	45' 10"	11' 4"	33' 8"
Husky	36'	?	22.2'
Pup Series 1	31'	7.6'	22.11'
Pup Series 2	31'	7.6'	23.2'
Scottish Aviation Bulldog	33.2'	8.11.5'	23.3'
Terrier 2	36'	8.11'	23.3'

Bede Aviation

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
BD-5B Microjet	21.6'	4.2'	13.7'

Beech

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
200 Super King Air	54' 6"	15' 0"	43' 9"

Beech Jet

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
200 Hawker	45.7'	15.4'	46'
400	48' 5"	13' 11"	48' 5"
4000 Hawker	61.9'	19.7'	69.2'
400A	43.6'	13.11'	48.5'
400XP	43.6'	13.11'	48.5'
850XP Hawker	54.4'	18.1'	51.2'
Citation Longitude	68.11'	19.5'	73.2'
Hawker 900XP	54.4'	18.1'	51.2'
NEXTANT G90XT	53.3'	14.11' (Tail)	35.6'
Premier I	44.6'	15.4'	46'

Beechcraft

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
100 KING AIR	45' 8"	15' 6"	39' 8"
1900 KING AIR EXEC.	58'	13' 6"	57' 10"
1900D	57.9'	15.5'	57.8'
200 Super King Air	54' 6"	15' 0"	43' 9"
23 MUSKETEER	32' 9"	8' 3"	25' 8"
250 KING AIR	57.11'	14.10'	43.10'
300 SUPER KING AIR	54' 6"	15' 0"	43' 8"
33 DEBONAIR	32' 8"	8' 3"	25' 6"
35 BONANZA	32' 10"	7' 7"	25' 2"
350i KING AIR	57.11'	14.4'	46.8'
36 BONANZA	33' 6"	8' 7"	27' 6"
38P Lightning	37.10'	?	29.11'
400	43' 6"	13' 11"	48' 5"
400A	43' 6"	13' 11"	48' 5"
50 TWIN BONANZA	45' 3"	11' 6"	31' 6"
55 BARON	37' 10"	9' 7"	25'
56TC BARON	37' 8"	9' 8"	28' 3"
58 BARON	37' 10"	9' 9"	29' 10"
58 P BARON	37' 8"	9' 3"	30' 0"
58 P Baron - Press (77 Her. 9'6")	37' 10'	9' 2"	29' 10"
58 P Baron - Pressurized	37' 10"	9'. 2"	29' 11"
58 P Baron Turbo Chg. + Specs thru 1978	37' 10"	9' 6"	29' 10"
58 TC Baron (325) Turbo Chg-non Press	37' 10"	9' 2"	29' 11"
58 TC Baron - Non-Press/Turbo chg. '78 Lgt. 9'2"	37' 10"	9' 6"	29' 10"
58 TC BARON 325	37' 8"	9' 3"	30' 0"
60 DUKE PRESSURIZED	39' 3"	12' 8"	33' 10"
65 QUEEN AIR	50' 3"	14' 3"	35' 6"
70 QUEEN AIR	50' 3"	16' 3"	35' 6"
76 DUCHESS	38' 0"	9' 6"	29' 1"
77 Skipper ('79-80 Height 7' 11")	30' 0"	6' 11"	24' 0"
88 QUEEN AIR	50' 3"	16' 3"	35' 6"
88 Queen Air Pressurized	50' 3"	14' 3"	36' 5"
90 KING AIR	45' 0"	15' 5"	35' 6"
95, B95 TRAVEL AIR	37' 10"	9' 6"	25' 4"
99. AIRLINER & EXEC.	46' 0"	14' 5"	44' 7"
99A AIRLINER	46' 0"	14' 5"	44' 7"
A100 KING AIR	46' 0"	15' 6"	40' 0"
A23 A23A MUSKETEER	32' 9"	8' 3"	25' 8"
A23-19 SPORT III MUSKETR	32' 9"	8' 3"	25' 8"
A24R SIERRA RG	32' 8"	8' 3"	25' 8"
A36 Bonanza ('70 & '71 Lgt. 26'8")	33' 6"	8' 7"	27' 6"
A36 TC BONANZA (Turbo)	33' 6"	8' 7"	27' 6"
A55 BARON	37' 10"	9' 7"	28'
A56TC BARON	37' 8"	9' 3"	29' 0"
A60 DUKE PRESSURIZED	39' 3"	12' 8"	33' 10"
A65 QUEEN AIR	50' 3"	14' 3"	35' 6"
A80 QUEEN AIR	50' 3"	16' 3"	35' 6"
A90 KING AIR	45' 0"	16' 8"	35' 6"
AB 35 BONANZA	32' 8"	6' 6"	25' 0"
AB33 DEBONAIR	32' 8"	8' 3"	25' 6"
AT-10 Wichita	44'	10.4'	34.4'
B 50 Twin Bonanza	45' 2"	11' 5"	31' 5"
B 80 Queen Air + specs thru 1972	50' 3"	14' 3"	35' 6"
B 80 Queen Air 1973 thru 1978	50' 3"	14' 8"	35' 6"
B100 KING AIR	45' 11"	15' 5"	39' 11"
B19 SPORT 150	32' 8"	8' 3"	25' 8"
B200 SUPER KING AIR	54' 6"	15' 0"	43' 9"
B200C	54' 6"	14' 10"	43' 10"
B200GT KING AIR	54.6'	14.10'	43.10'
B24 SIERRA 200	32' 8"	8' 3"	25' 8"
B24-R SIERRA 200	32.9'	8'	25.9'
B300/350 SUPER KING	58' 0"	16' 6"	46' 8"
B55 BARON	37' 8"	9' 8"	27' 0"
B55 BARON 73 AND UP	38' 0"	9' 8"	28' 0"
B60 Duke	39.75'	12.4'	33.10'
B60 DUKE PRESSURIZED	39' 3"	12' 3"	33' 8"
B80 QUEEN AIR	50' 3"	16' 8"	35' 6"
B80 QUEEN AIR	50.3'	14.2.5'	35.6'
B90 KING AIR	50' 3"	16' 8"	36' 6"
B95A, D95A TRAVEL AIR	37' 10"	9' 6"	25' 4"
B99 AIRLINER	46' 0"	16' 3"	44' 8"
C-12 Huron	54.6'	15'	43.9'
C-24R SIERRA 200	32' 9"	8' 1"	25' 9"
C.D. 35 BONANZA	32' 8"	6' 6"	25' 0"
C23 SUNDOWNER	32' 8"	8' 3"	25' 8"
C24 SIERRA 200	32' 8"	8' 0"	25' 8"
C33 DEBONAIR	21' 8"	8' 3"	25' 6"
C33A DEBONAIR	32' 8"	8' 3"	25' 6"
C50 TWIN BONANZA	45' 3"	11' 6"	31' 6"
C55 D55 BARON	37' 8"	9' 8"	28' 3"
C90 KING AIR	50' 3"	14' 3"	35' 6"
C90GTX KING AIR	53.8'	14.3'	35.6'
CUSTOM III MUSKETEER	32' 8"	8' 3"	25' 0"
D18 SUPER TWIN BEECH	47' 8"	9' 3"	33' 0"
D50 A.B. C. E. Twin Bonanza	45' 9"	11' 5"	31' 5"
DIAMOND IA	43' 6"	13' 8"	48' 8"
E 33C BONANZA	32' 8"	8' 3"	25' 6"
E 55 Baron	37' 10"	9' 2"	29' 0"
E.F.G. 35 BONANZA	32' 8"	6' 6"	25' 0"
E.F.G. 50 TWIN BONANZA	45' 8"	11' 6"	31' 6"
E18 SUPER TWIN BEECH	47' 8"	9' 3"	33' 0"
E33A BONANZA V TAIL	32' 8"	8' 3"	25' 6"
E50 BARON	37' 8"	9' 3"	29' 0"
E90 KING AIR	50' 3"	16' 3"	35' 6"
E95 TRAVEL AIR Fuel Inn.	37' 0"	9' 6"	25' 0"
F&E 33C Bonanza	32' 8"	8' 3"	25' 6"
F&E 33C BONANZA CONV	32' 9"	8' 3"	25' 6"
F&E BONANZA V TAIL	32' 8"	8' 3"	25' 6"
F33A	33' 6"	8' 3"	26' 8"
F90 KING AIR	46' 0"	15' 0"	39' 8"
G18 SUPER TWIN BEECH	49' 6"	9' 6"	35' 3"
G33 BONANZA	32' 8"	8' 3"	25' 6"
H18 SUPER TWIN BEECH	49' 8"	9' 3"	35' 3"
H35 BONANZA	32' 8"	6' 6"	25' 0"
HJ 50 TWIN BONANZA SUP	45' 8"	11' 6"	31' 6"
J35 BONANZA	32' 8"	6' 6"	25' 0"
K.M 35 Bonanza	33' 5"	6' 5"	25' 1"
K.M. BONANZA	33' 6"	6' 6"	25' 0"
KING AIR 350	57' 11"	14' 4"	46' 8"
Model 18 Twin Beech	47.8'	9.8'	34.2'
Model 77 Skipper	30'	7.11'	24'
Model 99A	45.10.5'	14.4.3'	44.6.75'
N. P 35 Bonanza	33' 5"	6' 5"	25' 2"
N.P. BONANZA	33' 6"	6' 6"	25' 3"
PREMIER IA	44' 6"	15' 4"	46'
S35 BONANZA	33' 6"	6' 6"	26' 6"
SKIPPER	30' 0"	7' 0"	24' 0"
STAR SHIP I	54' 6"	13' 9"	46' 1"
Super III Muskateer (A-23-24)	32' 8"	8' 3"	25' 0"
T-6A Texan	33.5'	10.8'	33.4'
UC-45 Expeditor	47.8'	9.8'	34.2'
V35 BONANZA	33' 6"	6' 6"	26' 6"
V35 TC BONANZA	33' 6"	6' 6"	26' 6"
V35A & B-TC BONANZA	33' 6"	6' 6"	26' 6"
V35A BONANZA	33' 6"	6' 6"	26' 6"
V35B BONANZA	33' 6"	7' 8"	26' 6"

Bell Aircraft

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
B-24J Liberator	110'	18'	67.8'
B-29 Superfortress	141.3'	27.9'	99'
P-39Q Aircobra	34'	12.5'	30.2'
P-59B Airacomet	45.6'	12.4'	38.10'
P-63A Kingcobra	38.4'	12.7'	32.8'
XFM-1	69.10'	13.7'	44.10'

Bell Helicopters

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
205 Iroquois	45' 7"	12' 8"	45' 11"
206L Jet Ranger	33' 4"	9' 4"	39' 8"
212 Twin	42' 2"	14' 5"	42' 5"
214 Huey Plus	50'	12' 10"	48'
222A	40'	11' 6"	42' 2"
H-13 Sioux	37'	9.7'	31.6'
Model 204/205	48'	14.7'	41.6'
Model 206B-L4	33.4'	9.4'	39.8'
Model 212	48'	12.6.9'	57.2'
Model 214	50'	12.8'	48.5'
Model 222	39.9'	11.8'	49.6'
Model 222B	42'	11.8'	50.3'
Model 222U	42'	12.2'	50.3'
Model 230	42'	11.8'	50.3'
Model 407	35'	11.65'	41.7'
Model 412EP	46'	15'	56.1'
Model 412EPI	45.9'	14.75'	55.7
Model 427	37'	10.5'	37.5'
Model 429 GlobalRanger	35.9'	13.3'	41.7'
Model 430	42'	12.3'	44.1'
Model 47	37.1'	9.3'	31.6'
Model 505 JetRanger X	37'	10.7'	36.9'
Model 525 Relentless	54.46'	?	?

Bellanca

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
14-13 CRUISEAIR SR.	34' 2"	6' 3"	21' 4"
14-19 Cruisemaster	34' 2"	6' 2"	23' 0"
14-19-2 CRUISEMASTER	34' 2"	6' 2"	22' 9"
14-19-3A Cruismaster	34.2'	6.4'	34.2'
14-19-3A, 260 A, B, C	34' 2"	6' 5"	23' 6"
14-9 Cruisair Junior	34.2'	6.3'	21.4'
16-13 Cruisemaster SR	34' 3"	6' 3"	21' 3"
16-19 CRUISEMASTER	34' 3"	6' 3"	23' 0"
16-19-2 CRUISEMASTER	34' 3"	6' 3"	22' 8"
16-19-3A. 260 A.B.C.	34' 3"	6' 6"	23' 6"
17-30-300 VIKING CONT.	34' 3"	7' 6"	23' 8"
17-30A	34' 2"	7' 4"	26' 4"
17-30A (1979 Specs)	34' 2"	7' 4"	26' 4"
17-30A 300 CONT.	34' 3"	7' 3"	26' 3"
17-31 A	34' 3"	7' 3"	26' 3"
17-31 ATC TURBO 300 LY	34' 3"	7' 3"	26' 3"
17-31 TC SUPER VIKING	34' 3"	7' 3"	23' 8"
6-13 CRUISEMASTER SR	34' 3"	6' 3"	21' 3"
7AC Champion	35'	?	21.6'
7ACA CHAMPION	35' 0"	7' 0"	22' 0"
8GCBC SCOUT (Land)	36' 3"	8' 8"	22' 8"
8KCAB Super Decathlon	32'	7.7'	22.9'
8KCAB-150 DECATHLON	32' 0"	7' 8"	23' 0"
8KCAB-180 DECATHLON	32' 0"	7' 8"	23' 0"
ARIES T-250	31' 3"	8' 8"	26' 3"
Model 14-13-2 Cruismaster	34.2'	6.3'	21.4'

Bellanca, Citabria

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
7 ECA CITABRIA	33' 6"	7' 8"	22' 8"
7GCAA CITABRIA	33' 6"	7' 8"	22' 8"
7GCBC CITABRIA	34' 6"	7' 8"	22' 8"
7GCBC CITABRIA W/FLOAT	34' 6"	9' 8"	22' 8"
7KCAB CITABRIA	33' 6"	7' 8"	22' 8"
Citabria Pro	32.8'	4.11'	27'

Boeing

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
707	145' 9"	42' 5"	152' 11"
727	108'	34'	108'
737	93'	44' 6"	102' 6"
737 MAX 10	117.10'	?	143.8'
737 MAX 7	117.10'	?	116.8'
737 MAX 8	117.10'	?	129.8'
737 MAX 9	117.10'	?	138.4'
737-100	93'	37'	94'
737-200	93'	37'	100.2'
737-300/400/500	94.9'	36.6'	102-120'
737-600/700/800/900	112.7/117.5' (winglets)	41'	102-138'
747-100	195.8'	Tail: 63.5'	231.10'
747-200B	195.8'	Tail: 63.5'	231.10'
747-300	195.8'	Tail: 63.5'	231.10'
747-400ER	211.5'	Tail: 63.8'	231.10'
747-8	224.7'	Tail: 63.6'	250.2'
747-SP	195.8'	Tail: 65.5'	184.9'
757-200	124' 10"	44' 6"	155' 3"
757-300	124' 10"	44' 6"	178' 7"
757-300	124.10'	44.6'	178.7'
767	156' 1"	52'	159' 2"
767-300	156.1'	?	180.3'
767-400ER	170.4'	?	201.4'
777-200LR	212.7'	61.1'	209.1'
777-300ER	212.7'	60.8'	242.4'
777-8 Dreamliner	235.5'	Tail: 64'	229'
777-9 Dreamliner	235.5"	Tail: 64.7'	251.9'
A350 XWB Airbus	212.43'	?	219.5'
B-17 Flying Fortress (Model 299)	103.9'	19.1'	74.4'
B-24J Liberator	110'	18'	67.8'
B767-200ER	156.1'	17.9'	159.2'
BBJ 787-8	197.3'	55.6'	186.1'
BBJ 787-9	197.3'	55.10'	206.1'
BBJ Max 7	118'	47.1'	117'
Model 247D	74.1'	12.5'	51.5'
Model 307 Stratoliner	107'	20.8'	74.3'
Model 40A	44.2'	12.3'	33.2'
Model 80A	80'	15.3'	56.6'

Bolkow

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
BK 117 B-2 helicopter	36.1'	12.8'	32.6'
Bo 207	35.5.5'	7.4.5'	27.2.75'
Bo 208 / MFI-9	24.4'	6.7'	19.2'
Bo 209-160	27.6.75'	7.2.5'	21.7.75'

Bombadier

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
300 Challenger	63.84'	20.33'	68.63'
350 Challenger	69'	20'	68.63'
601-3A/ER	64.4'	20.8'	68.5'
604 Challenger	64.33'	20.67'	68.42'
605 Challenger	64.3'	20.6'	68.4'
650 Challenger	64.4'	20.8'	68.5'
Global 5000/5500	94'	25.6'	96.10'
Global 6000/6500	94'	25.6'	99.5'
GLOBAL 7500	104'	27'	111'
GLOBAL XRS	94'	?	99'

Bonanza

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
C-24R Sierra 200	32' 9"	8' 1"	25' 9"

Brantly helicopters

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
B-2	23.9'	6.11'	28'
B-305	28.8'	8'	24.5'

Bristell

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Classic	29.9.5'	7.48'	21.1.6'
NG 5	29.9'	7.48'	21.1.6'
RG	29.9.5'	7.48'	21.1.6'
TDO	26.8'	7.48'	21.1.6'
UL	26.8'	7.6'	21.2'

British AER

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
BAC 111-200	88' 6"	23' 9"	91' 6"
BEA 146-200	86' 5"	28' 3"	85' 10"
BH-125-400A	47' 0"	16' 6"	47' 6"
BH-125-600	47' 0"	17' 3"	50' 6"
DH-125-3A-RA	47' 0"	16' 6"	47' 6"
HP JETSTREAM	52'	17' 6"	47' 2"
HS125-700A	47' 0"	17' 8"	50' 8"
HS748	102' 6"	24' 10"	67'

British Aerospace

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
A380-800	261.8'	79'	238.7'
ATP (Advanced Turbo Prop)	100.6'	23.5'	85.4'
Bae 146/ Avro RJ85	86.4'	28.2'	93.7'
Bae 146/Avro RJ100	86.4'	28.2'	102'
Bae 146/Avro RJ70	86.4'	28.2'	85.9'
Canberra B(I)6	64'	15.8'	65.6'
DH-125-3A-RA	47' 0"	16' 6"	47' 5"
Handley Page Jetstream, Series 200	52'	17.5'	47.2'
Hawker 700	47'	17.7'	50.9'
Hawker 800	54.4'	18.1'	51.2'
Hawker 850XP	54.4'	18.1'	51.2'
Hawker Siddeley Trident 1 & 1C	89.10'	27'	114.9'
Hawker Siddeley Trident 1E	95'	27'	114.9'
Hawker Siddeley Trident 2E	98'	27'	114.9'
Hawker Siddeley Trident 3B	98'	28.3'	131.2'
HS 125 Series 600	47'	17.3'	50.6'
HS Super 748	102.5.5'	24.10'	67'
Jetstream 31	52'	17.5.5'	47.1.75'
Jetstream 41	60.5'	18.10'	63.2'
Nimrod AEW3	115.1'	35'	137.8.5'
Strikemaster Mk 88	36.10'	10.11.5'	33.8.5'

Britten Norman

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
BN-2A Islander	49'	13.9'	35.8'
Defender 4000	53'	14.4'	40'
Sheriff	33'	?	22.11'
Trislander BN-2A Mk III-2	53'	14.2'	49.3'

Bucker

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Bu 131B	24.3'	7.6'	21.8'
Bu 133C	21.7.75'	7.2.5'	19.8.25'
Bu 134	21.8'	7.3'	19.9'
Bu 180	37.9'	6.1'	23.4'
Bu 181	34.7'	6.7'	25.7'
Bu 182C	28.2'	6.1'	21.11'

Canadair CH

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
650 Challenger	64.4'	20.8'	68.5'
B-47E	116'	28'	107.1'
C212C-300	66' 7"	21' 8"	52'
CF-104 Starfighter	21.9'	13.5'	54.6'
CL-215	93.10'	29.3'	65'
CL-28 Argus	142.3.5'	38.8'	128.9.5'
CL-415	93.11'	29.3'	65'
CL-44D4	142.4'	36.8'	136.11'
CL-66 Eland	105.4'	28.2'	81.6'
CL-84-1	34.4'	14.3'	47.3.5'
CL600 & 601	64' 4"	20' 8"	68' 6"
CN235	84' 8"	26' 10"	70' 2"
CRJ-100-200	69.7'	20.5'	87.10'
CRJ1000	85.11'	24.6'	128.5'
CRJ700	76.3'	24.10'	106.1'
CRJ900	81.7'	24.7'	118.11'
CT-133	42.5'	11.8'	37.8'
CT-41A-CT-114	36.4'	9.4.5'	32'
DC-4-M2 North Star	117.6'	27.6'	94.9.5'
PBY-5A	104'	21.1'	63.11'
REGIONAL	70' 4"	20' 8"	88' 5"
Sabre Mk.6	37.1.5'	14.9'	37.6'

Carbon Cub SS / CubCrafters

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
CubCrafters CC11-100 Sport Cub S2	34.2'	8.4'	23.3'

Carbon Cub/CubCrafters

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Carbon Cub SS	34.25'	9.25'	22.75'

CASA

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
CN235	84.8'	26.10'	70.2.5'
MBB 223 Flamingo	27.2'	8.10'	24.4'
Series 400 / C-212 Aviocar	66.6.5'	20.8'	53.1.75'

Cassutt

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
III Racer	15'	4'	16'

Cerva

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
CE.43 Guepard	32.9.5'	9.6'	25.9'

Cessna

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
120	33' 4"	6' 3"	21' 6"
140	33' 4"	6' 3"	21' 6"
140A	33' 3"	6' 3"	20' 9"
150	33' 4"	6' 1"	21'. 0"
150 D, E, F, G	32'. 8"	8' 5"	23' 9"
150 FLOAT	32' 8"	9' 0"	24' 0"
150 J Float Plane	32' 9"	9' 1"	24' 1"
150, A152	33' 3"	8' 6"	24' 0"
150A, B, C	33' 5"	6' 2"	21' 0"
150E, F, G	32' 8"	8' 6"	23' 8"
150L	33' 0"	8' 0"	23' 8"
150M, A150M AEROBAT	33' 4"	8' 6"	24' 9"
152	33' 9"	8' 6"	24' 1"
152, A152 (All w/conical wing tips)	33' 2"	8' 6"	24' 1"
160A	33' 3"	6' 3"	20' 8"
170A, B	36' 0"	6' 7"	25' 0"
172	36'	8'	27'
172 B	36' 0"	8' 6"	26' 5"
172 I SKYHAWK	36' 0"	8' 11"	27' 0"
172 K & L Skyhawk	35' 9"	8' 9"	26' 11"
172 K&L Float Plane	35' 9"	10' 0"	26' 7"
172 M FLOAT 74-76	35' 10"	9' 11"	27' 0"
172 M Float Plane (1973)	35' 9"	9' 11"	27' 0"
172 M Skyhawk	35' 10"	8' 10"	26' 11"
172 N-P HAWK 100 FLOAT	36' 0"	11' 11"	26' 8"
172 N/Hawk 100 thru '80	35' 10"	8' 10"	26' 11"
172 P II Skyhawk	35' 10"	8' 10"	26' 11"
172 R SKYHAWK	36.0892'	8.923885'	27.16535'
172 RG II CUTLESS	35' 10"	8' 9"	27' 6"
172 SKYHAWK	35' 11"	8' 10"	26' 11"
172A	36' 0"	8' 6"	25' 0"
172C	36' 0"	8' 6"	26' 6"
172D, E, F, G, H	36' 3"	8' 11"	26' 6"
175 A, B	36' 0"	8' 5"	25' 0"
175 C	36' 0"	8' 5"	25' 0"
175 SKYLARK	36' 2"	8' 11"	26' 11"
177 B Cardinal (1975-78 Specs)	35' 6"	8' 7"	27' 3"
177 B Cardinal (thru '74) ('70-71 Lgt 27'0" Hgt 9' 1")	35' 6"	8' 7"	27' 3"
177 Cardinal	35' 7"	9' 1"	27' 0"
177 R. G. Cardinal (1972-78)	35' 6"	8' 7"	27' 3"
177A CARDINAL	35' 6"	8' 7"	27' 8"
177RG CARDINAL	35' 6"	8' 7"	27' 8"
180	36' 0"	7' 5"	26' 0"
180 A - F	36' 0"	7' 6"	26' 2"
180 G, H	36' 0"	7' 6"	26' 2"
180 J, K, LAND	36' 0"	7' 6"	26' 2"
180 SKI	36' 0"	7' 6"	26' 2"
180 SKYWAGON	35' 10"	7' 9"	25' 9"
180J K (Float) (Prior '76 Lgt. 27'8")	35' 10"	12' 2"	27' 0"
180J, K (Ski)	35' 10"	7' 9"	27' 10"
180J, K Amphib (water)	35' 10"	12' 8"	27' 6"
180K '78 Up, Amphib & Float (27' 0" Lgt & 12'2" Hgt)	35' 10"	12' 8"	27' 6"
180K-78 AMP & FLOAT	35' 9"	12' 8"	27' 6"
182	36' 0"	8' 5"	26' 0"
182 A, B, C, D	36' 0"	9' 4"	29' 0"
182 E, F, G, H	36' 0"	9' 4"	29' 0"
182 J, K, L, M	36' 0"	9' 4"	29' 0"
182 J, K, L, M (Skylane) (M Lgt 28'1" & Hgt 8'9")	36' 2"	8' 1"	28' 5"
182 P, Q thru 1980	35' 10"	9' 3"	28' 0"
182 Q II (1981 & Up)	35' 10"	9' 3"	28'0"
182N SKYLANE	36' 0"	9' 4"	29' 0"
185 A, B, C, D Skywagon	36"	7' 6"	25' 5"
185 E SKYWAGON	35' 10"	7' 9"	25' 9"
185 II LANDPLANE	35' 10"	7' 9"	25' 9"
188 A, B, AG Wagon (1967-71) Fixed Prop-Norm	40'4"	7' 4"	25' 3"
188 AG PICKUP -1972	41' 8"	7' 10"	26' 3"
188 AG PICKUP 73-75	41' 8"	7' 10"	26' 3"
188 AG Pickup Fixed Prop (1972) Restricted	40' 9"	7' 9"	25' 3"
188 AG Pickup Fixed Prop (1973-75) Restricted	40' 9"	7' 10"	25' 3"
188 AG TRUCK	41' 8"	7' 8.5"	26' 3"
190	36' 2"	7' 2"	27' 1"
195	36' 2"	7' 2"	27' 3"
195/LC-126	36' 2"	7' 2"	27' 4"
195A	36' 1"	7' 3"	27' 4"
195B	36' 2"	7' 3"	27' 4"
205A	35' 10"	9' 7"	28' 3"
206, U206 SUPER WAGON	35' 10"	9' 7"	28' 3"
206C, D, (Float) Skywagon	36' 7"	13' 11"	28' 6"
206H STATIONAIR	36'	9' 3.5"	28' 3"
207 SKY WAGON	35' 9"	9' 6"	32' 3"
207A Skywgn & Statnr, 7&8 (Prior 79 Lgt. 31'9")	35' 10"	?	32' 2"
208 B CARAVAN I	52' 1"	14' 2"	41' 7"
208 CARAVAN I	52' 3"	16' 9"	37' 6"
208 CARAVAN I AMPHI.	52' 3"	16' 3"	38' 11"
210 A TWO TEN	39' 9"	9' 8"	28' 2"
210 B, C TWO TEN	39' 9"	9' 8"	28' 2"
210 D & E CENTURION	39' 9"	9' 8"	28' 2"
210 F CENTURION	39' 9"	9' 8"	28' 2"
210 K, M & N	39' 9"	9' 8"	28' 2"
210G, H, & J CENTURION	39' 9"	9' 8"	28' 2"
303 CRUSADER	39'	13' 4"	30' 6"
310	35'	10' 6"	27'
310 A	36' 0"	10' 6"	27' 0"
310 B	36' 11"	10' 8"	23' 11"
310 CD FUEL INJ.	36' 0"	9' 8"	29' 6"
310 FG FUEL INJ.	36' 8"	9' 8"	29' 6"
310 H FUEL INJ.	37' 6"	9' 8"	29' 6"
310 IJ FUEL INJ.	37' 0"	10' 0"	29' 6"
310 KLN FUEL INJ.	37' 0"	10' 0"	29' 6"
310 P	36' 8"	10' 6"	29' 3"
310 Q	36' 8"	10' 6"	29' 6"
310 R II	37' 0"	10' 8"	32' 0"
320 A, B, C SKYNIGHT	36' 8"	10' 3"	29' 6"
320 ABC Skyknight Turbocharged	36' 9"	10' 3"	29' 6"
320 SKYKNIGHT	36' 8"	10' 3"	29' 6"
320 Skyknight Turbocharged	36' 9"	10' 3"	29' 5"
320D, E& F SKYNIGHT TURBO	36' 8"	10' 6"	29' 6"
325 II	38' 0"	12' 8"	34' 6"
335 II TURBOCHARGE	38' 1"	12' 7"	34' 4"
336 SKYMASTER FIXED GE	38' 0"	9' 3"	29' 6"
337 A SKYMASTER	38' 0"	9' 4"	29' 9"
337 B SKYMASTER	38' 0"	9' 4"	29' 9"
337 C SKYMASTER	38' 0"	9' 4"	29' 9"
337 D SKYMASTER	38' 0"	9' 4"	29' 9"
337 E SKYMASTER	38' 0"	9' 4"	29' 9"
337 F SKYMASTER	38' 0"	9' 4"	29' 9"
337 G, H II SKYMASTER	38' 0"	9 4"	29' 9"
340 Pressurized-Turocharged	38' 1"	12' 6"	34' 4"
340A II PRESSURIZE TURBO	38' 1"	12' 7"	34' 4"
350 CORVALIS	36' 1"	9'	25' 2"
400	36' 1"	9'	25' 2"
401-A & B TURBO	39' 8"	11' 8"	33' 8"
402A TURBO	40' 0"	11' 8"	35' 8"
402B BUS LINER	40' 0"	11' 8"	36' 0"
402C BUS LINER II	44' 2"	11' 6"	36' 5"
404 TITAN AMBASSADOR	46' 4"	13' 3"	39' 7"
404 Titan Ambassador II	46' 4"	13' 3"	39' 6"
406 CARAVAN	49' 6"	13' 2"	39' 0"
406 Caravan II	49' 8"	13' 3"	39' 0"
408 SKY COURIER	72'	19' 9"	54' 10"
411A	39' 8"	11' 6"	33' 6"
411A Turbocharged	39' 9"	11' 4"	33' 5"
414	39' 11"	11' 9"	33' 9"
414 Presssurized - Turbocharged	39' 11"	11' 8"	33' 9"
414A CHANCELLOR	44' 11"	11' 6"	36' 4"
414A II CHANCELLOR	44' 2"	11' 6"	36' 5"
414A II Chancellor-Press-Turbo (78 Span 44'3")	44' 1"	11' 5"	36' 4"
416A CHANCELLOR	44' 0"	11' 6"	36' 6"
421 A & B	39' 10"	11' 8"	33' 9"
421 PRESSURIZED TR P	39' 8"	11' 6"	33' 6"
421B GOLDEN EAGLE	41' 8"	11' 6"	36' 0"
421C GOLDEN EAGLE III	41' 0"	11' 6"	36' 6"
425 CORSAIR	44' 0"	12' 8"	36' 0"
425 CORSAIR/CONQUEST	44' 2"	12' 7"	35' 10"
441 CONQUEST	49' 4"	13' 2"	39' 0"
510 CITATION MUSTANG	43' 2"	13' 5"	40' 7"
525 CITATION JET	47' 3"	13' 11"	42' 7"
526 CITATION JET	37'	12' 6"	40' 8"
560	52' 3"	15' 0"	48' 10"
680 CITATION SOVEREIGN+	72' 4"	20' 4"	63' 6"
680A CITATION LATITUDE	72' 4"	20' 11"	62' 3"
850 CITATION COLUMBUS	80'	27' 7"	77'
A150 K, L Aerobat (1971-73)('71 Hgt. 8'8")	32' 9"	8' 0"	23' 9"
A150 L Aerobat (1974)	32' 9"	8' 0"	23' 9"
A150L AEROBAT	32' 8"	8' 0"	23' 8"
A185E SKYWAGON	36' 3"	7' 8"	25' 6"
A185F AMPHIBIAN	35' 9"	12' 8"	27' 6"
A185F FLOAT	35' 9"	12' 3"	27' 0"
A185F SKI	35' 9"	7' 8"	27' 9"
A185F SKYWAGON	35' 9"	7' 8"	25' 8"
A188 A, B, AG WAGON	40' 5"	7' 5"	26' 3"
A188 AG TRUCK RESTRICT	41' 8"	8' 0"	26' 3"
A188 AG WAGON	40' 8"	8' 3"	25' 11"
A188B AG TRUCK	41' 8"	8' 3"	25' 11"
AT-17 BOBCAT	41' 11"	9' 11"	32' 9"
C-165/UC-94 AIRMASTER	33' 10"	7' 3"	24' 10"
C-34/37/38	34.2'	7'	25' 8"
CG-2 Primary Glider	36' 2"	6'10"	18'
CH-1 Helicopter	35'	8' 3"	29 '5"
CH-4/YH41 Helicopter	35'	8' 3"	30 '5"
CITATION 550	44' 0"	16' 6"	43' 6"
Citation 550 (s. n. no. 1-70)	43' 9"	14' 4"	43' 6"
CITATION BRAVO	51.7'	15	47.9'
CITATION CJ1	46.9'	13.7'	42.7'
CITATION CJ3	53.3'	15.2'	51.2'
CITATION CJ4	50.10'	15.5'	53.4'
CITATION I	47' 0"	16' 6"	43' 6"
Citation I 550	47' 1"	14' 4"	43' 6"
Citation I 551 (Unit-0075-0255 & Up)	51' 8"	14' 10"	47' 2"
CITATION II	52' 3"	15' 0"	47' 3"
Citation II 550	51' 8"	14' 11"	47' 2"
Citation II 550 (Unit-0075-0255 & Up)	51' 8"	14' 10"	47' 2"
CITATION III 650-560	53' 6"	16' 10"	55' 6"
CITATION IV	59' 0"	17' 6"	58' 8"
CITATION JET	45' 3"	13' 8"	42' 8"
CITATION JET/M2	47' 3"	13' 11"	42' 7"
CITATION LONGITUDE	73.2'	19.5'	73.2'
CITATION ULTRA	52' 2"	15'	48' 11"
CITATION VII	53.5'	16.8'	55.4'
CITATION X+	69' 2"	19' 3"	73' 7"
CITATION XLS+	56' 4"	17' 2"	52' 6"
COMMUTER II	33' 2"	8' 6"	23' 11"
CR-1	16'	?	12'
CR-3	18' 5"	4' 6"	17'
CW-6	43' 4"	8' 2"	29' 4"
DC-6/UC-77	48'	7' 8"	28' 2"
E530 AIR LAND SCORPION	47' 10"	13' 4"	45' 6"
L-19/O-1E BIRD DOG	36'	7' 4"	25' 10"
MODEL 120	32' 8"	6' 3"	20' 8"
MODEL 150	33' 8"	6' 0"	21' 0"
MODEL 160	32' 8"	6' 3"	20' 8"
MODEL 175	36' 0"	8' 6"	25' 0"
MODEL 180	36' 0"	7' 6"	26' 0"
MODEL 182	36' 0"	8' 6"	26 0"
MODEL 190	36' 3"	7' 3"	27' 3"
MODEL 195	36' 3"	7' 3"	27' 3"
MODEL 340	38' 0"	12' 6"	34' 6"
MODEL 416	40' 0"	11' 8"	33' 8"
MODEL 560	52' 3"	15' 0"	49' 0"
Model A	40' 2"	6' 11"	24' 8"
Model AA	40' 7"	7' 4"	23' 9"
Model AC	40' 7"	7' 4"	23' 9"
Model AF	40' 7"	7' 4"	23' 9"
Model AS	40' 7"	7' 4"	23' 9"
Model AW	40' 7"	7' 4"	23' 9"
Model BW	40' 7"	7' 4"	23' 9"
P206 A - E	36' 6"	9' 8"	28' 3"
P206 SUPER SKY LANE	36' 6"	9' 8"	28' 3"
P210N II PRESSURIZED	36' 8"	9' 3"	28' 3"
R172 K, HAWK XP	35' 10"	8' 10"	27' 6"
R172 K/Hawk XP (Floats)	35' 10"	12' 5"	26' 10"
R172 SKYHAWK XP FLOATS	35' 9"	12' 6"	26' 9"
R182 II RG TURBO SKYLANE	35' 9"	8' 11"	28' 8"
R182 RG SKYLANE	35' 9"	8' 11"	28' 8"
S550 CITATION II	51' 7"	15'	47' 8.5"
T 207, A, Turbo (Stationair 7&8)	35' 10"	9' 7"	32' 2"
T 310 P II TURBO	36' 8"	10' 6"	29' 3"
T 310 Q II TURBO	36' 8"	10' 6"	29' 6"
T 310 R II TURBO	37' 0"	10' 8"	32' 0"
T-182Q II TURBO SKYLANE	35' 9"	9' 3"	28' 6"
T-37B TWEET/Model 318	33' 9.33"	9' 2"	29' 3"
T-41 MESCALERO	35' 10"	8' 10"	26' 11"
T188C AG HUSKY	41' 8"	8' 3"	26' 6"
T207 TURBO STATIONAIR	35' 9"	9' 6"	32' 3"
T210 L & M TURBO	36' 8"	9' 6"	28' 3"
T210F TURBO CENTURION	36' 6"	9' 8"	28' 0"
T210G, H, J TURBO CENTUR.	36' 8"	9' 6"	28' 3"
T210K TURBO CENTURION	36' 8"	9' 8"	28' 3"
T210N TURBO CENTURION	36' 8"	9' 8"	28' 3"
T210N TURBO CENTURION II	36.9'	9.8'	28.2'
T303 CRUSADER	39' 1"	13' 4"	30' 6"
T337 B SKYMASTER TURBO	38' 0"	9' 4"	29' 0"
T337 C SKYMASTER TURBO	38' 0"	9' 6"	29' 8"
T337 D SKYMASTER TURBO	38' 0"	9' 6"	29' 8"
T337 E&F SKYMASTR TURBO	38' 3"	9' 6"	29' 8"
T337 G-PII, HP SKYMASTER	38' 3"	9' 3"	29' 8"
T337 H-II TURBO	38' 3"	9' 3"	29' 8"
T50 UC78 AT17 BAMBOO	42' 0"	9' 11"	32' 9"
TP 206A - E	36' 6"	9' 8"	28' 3"
TU 206 A, B & C	36' 6"	9' 8"	27' 7"
TU 206 B, C,D, E Skywagon (B Lgt 28' 0)	36' 0"	9' 4"	28' 3"
TU 206 E & F SKI	35' 10"	9' 8"	28' 8"
TU 206 E, F Stationair, Turbo	35' 10"	9' 7"	28' 9"
TU 206C,D,E & F II STATION	35' 9"	13' 11"	28' 6"
TU 206G II STATIONAIR	35' 9"	16' 0"	29' 8"
TU 206G II Stationair 6 (Float)	35' 10"	14' 2"	29'8"
TU TURBO 206E & F	35' 10"	9' 6"	28' 8"
TU TURBO 206G	35' 10"	9' 5"	28' 3"
U206 B, C & E SKYWAGON	36' 6"	9' 6"	28' 7"
U206 E SKI SUPER SKYWGN	35' 10"	9' 8"	28' 8"
U206 E, F (Ski) Super Skywagon	35' 10"	9' 8"	28' 8"
U206 F & E STATIONAIR 6	35' 8"	13' 11"	28' 6"
U206 F & G	35' 9"	9' 5"	28' 3"
U206 F SKI	35' 10"	9' 8"	28' 0"
U206 G II Stationair 6-Float (1979-81)	35' 10"	14' 2"	29' 8"
U206A	36' 6"	9' 8"	27' 8"
U206C & D FLOAT STATION	36' 6"	13' 11"	28' 6"
U206D SKYWAGON	36' 6"	13' 11"	28' 6"
U206E & F FLOAT STATION	35' 9"	13' 11"	28' 6"
U206F, G ('75 Up) ('75 Lgt 28'9")	35' 10"	9' 4"	28' 3"
U206G FLOAT STATIONAIR	35' 9"	16' 3"	29' 9"
U206G II STATIONAIR 6	35' 9"	16' 3"	29' 8"
U206G STATIONAIR 6 F	35' 8"	16' 0"	29' 7"
X+ CITATION	69.2'	19.3'	73.7'

Champion

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
2006 8GCBC Scout	36.3'	9.8'	23'
402 TWIN LANCER	35' 5"	10' 0"	22' 3"
425 CORSAIR	44' 1"	13' 4"	35' 10"
7EC TRAVELER	35' 0"	7' 0"	21' 6"
7ECA CITABRIA AURORA	33' 6"	6' 6"	22' 3"
7GCAA	33' 6"	6' 8"	22' 7"
7GCAB CITABRIA	34' 3"	6' 6"	22' 6"
7GCAB CITABRIA FLOATS	35' 6"	6' 8"	22' 6"
7GCB SKYTRAC	34' 6"	6' 0"	22' 8"
7GCBC	34' 3"	6' 7"	22' 7"
7GCBC with EDO Floats	35' 5"	6' 8"	22' 7"
7KCAB CITABRIA	33' 6"	6' 9"	22' 8"
Citabria 7ECA	33.6'	7.7'	22.1'
Denali Scout 8GCBC	36.3'	8.7'	23'

Cirrus

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
SF50 Jet	38'8"	10'11"	30'11"
Sirius TL-3000	30' 8"	7' 5"	22' 8"
SR20	38' 4"	8' 11"	26'
SR20-G3	38' 4"	8' 11"	26'
SR22	38' 4"	8' 9"	26'
SR22 G5 GTS	38' 4"	8' 11"	26'
SR22 Turbo	38' 4"	8' 9"	26'
SR22 Turbo GTS	38' 4"	8' 9"	26'
SR22T	38' 4"	8' 11"	26'
SRS	29' 8"	6' 9"	18' 7"
SRV-G3	38' 4"	8' 9"	26'
Vision Jet	38' 7"	10' 9"	30' 7"
Vision SF50	38' 8"	10' 11"	30' 11"
VK-30 (kit)	39' 8"	10' 8"	26'

Commander

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
1000AC Jet Prop	52.1'	14.9'	43'
112	35' 7"	8' 5"	25'
112A	35.7'	8.5'	25'
112B	35.7'	8.5'	25'
112TC-A Commander	35.7'	8.5'	25.1'
114	32' 10"	8' 5"	25'
114A Grand Turismo	32.9'	8.5'	25'
114B	32.9'	8.5'	24.11'
116	35' 10"	8' 5"	25'
500S	49'	14.6'	36.10'
560 Twin Commander	49'	14.6'	36.9'
680FL Twin Commander	49'	15'	41'
690A Twin Commander	46.8'	14.11'	44.4'
690B	46.5'	14.9'	44.3'
840AC Jet Prop	52.1'	14.9'	43'
900AC Jet Prop	52.1'	14.9'	43'
980AC Jet Prop	52.1'	14.9'	43'

Consolidated

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
B-24J Liberator	110'	18'	67.8'
B-32 Dominator	135'	32.2'	82.1'
Model 17 Fleetster	45'	10.2'	31.9'
O-17 Courier	34.5.5'	9.9'	27.11'
P-30 (PB-2)	43.11'	8.3'	30'
PB2Y-5 Coronado	115'	27.6'	79.3'
PB4Y-2 Privateer	110'	30.1'	74.7'
PBY-5A Catalina	104'	21.1'	63.10'
PT-11D	31.7'	9.8'	26.11'
TBY Sea Wolf	56.11'	15.6'	39.2'

Convair

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
440	105' 4"	29' 2"	81' 6"
580	105' 4"	29' 2"	81' 6"
880 Model 22 & 22M	120'	36.375'	129.4'
990A Coronado	120'	39.6'	139.9'
C-131B	105.4'	28.2'	79.2'
CV-240	91.9'	26.11'	74.8'
F106A Delta Dart	38.25'	20.3'	70.7'
Model 118 Flying Car	34.5'	8.4'	?
Model 48 Charger	30.1'	13.7'	34.10'
R3Y Tradewind	145.9'	51.5'	139.8'
XP-81	50.6'	13.6'	44.8'

Corsair

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
F4U-4	41'	14.9'	33.8'

Corvus

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Fusion	27.4'	7.6'	22'

Culver

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Cadet LFA	27'	5.6'	17.8'
Dart GW	29.6'	6.1'	?
PQ-14A	30'	8.4.5'	19.6'
V-1	29'	6.9.5'	20.8.5'

Daher Aircraft Co.

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Kodiak 100	45'	14.7'	33.10'
TBM 910	42.1'	14.3'	35.2'
TBM 930	42.1'	14.4'	35.2'
TBM 940	42.1'	14.3'	35.2'
TBM ISR	42.10'	14.3'	35.2'

Dassault Falcon

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
2000DX	63.5'	23.2'	66.4'
200LX	63.5'	23.2'	66.4'
C20	53' 6"	17' 8"	56' 3"
D20	53.6'	17.8'	56.3'
FALCON 10	42' 11"	15' 2"	45' 6"
FALCON 100	42' 11"	15' 2"	45' 6"
FALCON 200	54'	18'	56'
FALCON 2000	63' 5"	23' 2"	66' 4"
FALCON 2000EX	63.5'	23.2'	66.4'
Falcon 2000S & 2000 LXS	70.17'	23.2'	66.3'
FALCON 30	54'	18'	56'
Falcon 50EX	61.10'	22.11'	60.9'
FALCON 7X	86'	25' 8"	76' 1"
Falcon 8X	86.25'	26.1'	80.2'
FALCON 900	63' 5"	24' 10"	66' 4"
Falcon 900EX EASy	70.1'	24.8'	66.4'
Falcon 900LX	70.1'	24.75'	66.3'
FALCON FAN JET 50	61'11"	22' 10"	60' 9"
FALCON FAN JET C,D 20	54' 0"	18' 0"	56' 0"
MODEL 10	42' 9"	15' 3"	45' 6"
MODEL 50	63' 5"	22' 11"	60' 8"
MODEL 900	63' 5"	24' 8"	66' 5"

De Havilland

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Albatross DH.91	105'	22.3'	71.6
Biplane No. 1	36'	?	29'
Comet 1	115'	Tail: 29.6'	93'
Comet 2	115'	Tail: 29.6'	96.1'
Comet 3	115'	Tail: 29.6'	111.6'
Comet 4	115'	Tail: 29.6'	111.6'
DH 82A Tiger Moth	29.4'	8.9'	23.11'
DH.14 Okapi	50.5'	14'	33.11.5'
DH.34	51.4'	12'	39'
DH.37	37'	?	28'
DH.50	42.9'	11'	29.9'
DH.51	37'	9.9'	26.6'
DH.60G Gipsy Moth	30'	8.9.5'	23.11'
DH.65A Hound	45'	11.6'	31'
DH.66A Hercules	79.6'	18.3'	56'
DH.71 Tiger Moth	22.6'	7'	18.7'
DH.75A Hawk Moth	47'	9.4'	28.10'
DH.80 Puss Moth	36.9'	7'	25'
DH.82 Tiger Moth	29' 4"	8' 10"	23' 11"
DH.83 Fox Moth	30.10.5'	8.9.5'	25.9'
DH.84 Dragon 1	47.4'	10.1'	34.6'
DH.86A Express	64.6'	13'	46.1'
DH.87B Hornet Moth	31.11'	6.7'	24.11.5'
DH.88 Comet	44'	10'	29'
DHC 6-200 TWIN OTTER	65' 0"	19' 6"	52' 0"
DHC 6-300 TWIN OTTER	65' 0"	19' 6"	51' 9"
DHC 6-300 Twin Otter (Thru 1976)	65' 0"	18' 7"	51' 9"
DHC 7	93'	26' 2"	80' 8"
DHC 8-100	85'	25'	73' 0"
DHC 8-200	85' 0"	25' 0"	73' 0"
DHC 8-300	90' 0"	25' 0"	84' 11"
DHC 8-400	93' 2"	27' 3"	107' 8"
Don	47.6'	9.5'	37.4'
Doncaster	54'	16.6'	43'
Dove 7	57'	13.4'	39.3'
Dragon Rapide	48'	10.3'	34.6'
Dragonfly	43'	9.2'	31.8'
Flamingo	70'	15.3'	51.7'
Giant Moth	52'	13.1'	39'
Heron 2D	71.6'	15.7'	48.6'
Hornet F.1	45'	14.2'	35.6'
Humming Bird	30.1'	7.3'	19.8'
Leopard Moth	37.6'	8.9'	24.6'
Mosquito	54.2'	17.5'	41.2'
Moth Minor	36.7'	6.4'	24.5'
Sea Vixen FAW.2	51'	10.9'	55.7'
Vampire FB.6	38'	8.10'	30.9'
Venom FB-1	41.8'	6.2'	31.10'

Diamond

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
D-JET	37.9'	11.10'	35.1'
DA20-CI	35.8'	7.2'	23.6'
DA40 XL Diamond Star	39.2'	6.6'	26.5'
DA40 XLT	39.2'	6.6'	26.3'
DA42 Twin Star	44'	8.2'	28.1'
DA50 SuperStar	38.4'	7.3'	28.11'
DA62	48.3'	7.6'	30.2'
DART 450	38.6'	11.1'	35.3'
H36 Dimona glider	52.6'	?	?

Dornier

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
228-200	55' 7"	15' 9"	54' 4"
328-310	68.10'	23.9'	69.3'
Do 12 Flying Boat	42.8'	12.8'	29.7'
Do 17 Z-2	59.1'	15'	51.10'
Do 228NG	55.8'	15.11'	54.4'
Do 24T-1	88.7'	18.10.5'	71.10'
Do 26A Seeadler	98.5'	22.8'	80.5'
Do 27Q-5	39.5'	9.2'	31.6'

Douglas

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
A-1H Skyraider	50.1'	15.8.25'	38.10'
A-20G-20-DO Havoc	61.4'	17.7'	47.11'
A-26B-15-DL Invader	70'	18.3'	50'
A-33	47.9'	9.4'	32.6'
A-4F Skyhawk	26.6'	15'	40.3'
B-18A Bolo	89.6'	15.2'	57.10'
C-54G Skymaster	117.6'	27.6'	93.10'
DC-2	85'	15.10'	62.6'
DC-3A	95.2'	16.11'	64.8'
DC-4-1009	117.6'	27.6'	93.10'
DC-5	78'	19.10'	62.2'
DC-6, 6A, 6B	117.6'	28.5'	105.7'
DC-7	117.6'	28.7'	108.11'
DC-8 Piston	110.2'	26.9.75'	77.8'
F3D-2 Skyknight	50'	16.1'	45.5'
M-4 Mail Plane	44.6'	10.1'	28.11'
O-43	45.8'	12.3'	33.11'
O-46A	45.9'	10.8.5'	34.6.75'
RD-3 Dolphin	60'	15.2'	45.3'
SBD-5 Dauntless	41.6.5'	13.7'	33.1.25'
TBD-1 Devastator	50'	15.1'	35'

Eagle Aircraft

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
DW-1	55'	10.9'	26'
Eagle 220	55'	10.7'	26'
Eagle E-150B	23.6'	7.7'	21.2'

Eclipse Aerospace One Aviation

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Eclipse 550 jet	37.9'	11'	33.5'

Embraer

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
100EV Phenom	40.4'	14.3'	42.1'
120 BRASILIA	64' 11"	20' 10"	65' 10"
450 Legacy	66.5'	21.1'	64.7'
500 Legacy	66.5'	21.2'	68.1'
500 Praetor	70.6'	21.1'	64.7'
600 Praetor	70.6'	21.2'	68.1'
650 LEGACY	68.11'	22.2'	86.5'
E170	85.4'	32.4'	98.1'
E175	85.4'	32.4'	103.11'
E175-E2	101.7'	32.7''	106.3'
E190	94.3'	34.8'	118.11'
E190-E2	110.7.6	35.11'	118.11'
E195	94.3'	34.7'	126.10'
E195-E2	115.2'	35.8'	136.2'
EMB 110 P1 BANDEEIRANTE	50' 3"	16' 2"	49' 7"
ERJ135	65.9'	22.2'	86.5'
ERJ140	65.9'	22.2'	93.4'
ERJ145 LR/XR	65.9'	22.2'	98'
EXCALIBUR 800 C BEECH	46' 11'	3" 31'	5"
FMA CBA 123 Vector	58.1.5'	19.7'	59.4.25'
LINEAGE 1000	94.3'	34.8'	118.11'
PHENOM 300E	53'	16.5'	52'
TWIN BONANZA	46'	11' 3"	31' 5"

Enstrom helicopters

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
280FX	32'	9'	28.7'
480 light helicopter	32'	9.7'	29.10'
F28F	32'	9'	29.3'

Epic Aircraft

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
E1000	43'	12.6'	35.10'
Elite jet	44'	12.4'	39.9'
LT/Dynasty	43'	12.6'	35.10'
Victory	36.4'	10.8.5'	33.5'

Ercoupe

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
415-C	30'	5.11'	20.9'
415-G	30'	5.6'	30'
A-2A Alon	30'	5.7'	20.4'

Eurocopter Helicopters

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
AS350 B3 Ecureuil / Astar	35.1'	10.3.5'	35.10.5'
AS355F2 Squirrel	35.1'	10.3.5'	42.5.5'
AS550 C3	35.1'	10.11'	35.10'
EC120 B Colibri	32.8'	11.2'	31.5'
EC130 B4	35.1'	10.11'	35'
EC135 P2+ / T2+	33.6'	11.6'	33.6'
EC145 C-2	36'	11.4'	42.9'
EC635 P2	33.6'	11.11'	33.6'
Tiger HAP	42.8'	12.7'	46.2'
UH-72A Lakota	36.1'	11.9'	42.7'

Eurofighter

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Typhoon	35' 11"	17' 4"	52' 4"

Evektor

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
EV-55 Outback	52.8'	15.28'	47.1'
Harmony LSA	30.4'	8.2'	20'
SportStar	28.5'	8.2'	17.7.5'
SuperCobra VUT100-131i	33.6'	?	26.3'

Excalibur (Formerly Swearingen)

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Excalibur 800 Conv. Beech Twin Bonanza	46' 0"	11' 3"	31' 5"
Excalibur Conv. Beech Twin Bonanza	46' 0"	11' 3"	31' 5"

Excalibur Ultralight kit planes

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
2024-T3	31' 6"	6' 0"	20' 0"
6061-T6	31' 6"	6' 0"	20' 0"

Extra

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
330LT	26.3'	8.6'	23'
EA-300L	24.3'	8.7.25'	22.9.5'

Fairchild

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
AC-119G Shadow	109.3.25'	26.7.75'	86.5.75'
C-119C Boxcar	109.3'	26.6'	86.6'
C-123K Provider	110'	34.1'	76.3'
C-82A Packet	106.5.5'	26.4'	77.1'
F100 (Y1C-24)	57'	?	39.2'
F228	78.9'	27.8'	86.8'
FC-2	44'	9'	31'
KR-21-A Monoplane	28.3'	?	21.6'
KR-34	30.1'	9.3'	23.2'
Model 22 (C7F)	33'	7.11'	22.3'
Model 24 (UC-61)	36.4'	7.8'	23.10'
Model 71C	50'	9.4'	35.10.25'
PT-19A	36'	10.6'	28'
T-21 Gunner	52.8'	13.1.25'	38'
XC-120	106.6'	25.1'	82.10'
XNQ	41.5'	8.10'	27.11'

Fairchild Hiller

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
FH-1100 helicopter	35.5'	9.3.5'	27.9.5'
FH-227E	95.2'	27.7'	83.8'

Fairchild Swearingen

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Merlin IIIC	46.3'	16.10'	42.2'
Metroliner III	57'	16.8'	59.4'

Fairchild-Dornier

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
328-300JET	68.10'	23.9'	69.3'
428JET	71.5'	23.3'	81'
A-10A Thunderbolt	57.6'	14.8'	53.4'
AU-23 Peacemaker	49.8'	14.4'	36.10'
T-46	38.7.75'	9.11.75'	29.6'

Falcon

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
2000	63' 5"	22' 11"	63' 1"
900	63' 5"	24' 9"	66' 4"
Falcon Fan F "20"	53' 5"	17' 5"	56' 3"
Falcon Fan Jet "20"	53' 6"	12' 8"	56' 3"
Falcon Fan Jet "10"	42' 10"	15' 2"	45' 3"
Falcon Fan Jet "10" ('76-77)	42' 9"	14' 6"	45' 6"
Falcon Fan Jet "50" (3 Eng-Fan Jet)	61' 10"	22' 11"	60' 9"
Falcon Fan Jet D "20"	53' 6"	17' 8"	56' 3"
Falcon Fan Jet F "20" (Thru 1975)	53' 5"	17' 5"	56' 3"

Fisher

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Avenger	27'	5'	16.3'
Celebrity	22'	6'	17.6'
Classic	22'	5.11'	16.9'
Dakota Hawk	28.6'	6.1'	19.9'
FP-202 Super Koala	31'	5.7'	18.1'
FP-303	27.8'	5.2'	16.6'
FP-404 EXP	18'	5.5'	14.6'
FP-505 Skeeter	28'	5.9'	16.6'
FP-606 Sky Baby	28'	5.11'	17.9'
Hodrizon 1 & 2	25.3'	5.8'	18.8'
R-80 Tiger Moth	23'	7.4'	19'
Youngster	18'	6.1'	15.6'

Flaris Very Light Jet

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
LAR01	28.6'	8'	27.4'

Fleet

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Model 60 Fort	36'	8.3'	26.10.5'
Model 7 Fawn Mk II	28'	7.10'	21.8'
Model 80, 81 Canuck	34'	7.1'	22.4'
Models 10-16 Finch	28'	7.9'	21.8'

Flight Design

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
CT2K	30.5'	7'	20.5'
CTLSi GT 2020	28.2'	7.8'	21.8'
CTSW	27.11'	7.1'	20.5'

Fokker

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
C-2A Atlantic-Fokker	71.2'	12.8'	47.11'
C.I.	34.5'	9.5'	23.9'
C.IV	42.3'	11.1'	30.2'
C.V	41'	10.10'	30.4'
D.I	29.8'	8.4'	20.8'
D.VII	29.2'	9'	22.10'
D.X	45.11'	9.8'	26.3'
D.XI	38.3.5'	10.6'	11.7.25'
D.XIII	36.1'	9.6'	25.11'
D.XXI	36.1'	9.7'	26.11'
DC.I	38.7'	11.2'	29.1'
F-10	71.2'	12.5'	50.8'
F-11A	59'	13'	45'
F-14	59.5'	12.4'	43.3'
F-26	59.9'	13.1'	50.6'
F-27	95.2'	28.7'	82.3'
F-28 Fellowship	77.4'	27.9.5'	89.10'
F-29	107.10'	34.8'	129.4'
F.II	52.10'	12'	38.3'
F.III	58'	10.6'	36.4'
F.V	52.6'	13.1'	39.4'
F100	92.2'	27.11'	116.7'
F25	39.4'	9.9'	28'
F50	95.2'	27.4'	82.10'
F60	95.2'	27.4'	88.16'
F70	92.2'	27.9'	101.5'
G.I Mercury	56.3'	12.4'	35.8'
PW-5	39.5'	9'	26.1'
S-11	36.1'	7.5'	26.8'
S-14 Machtrainer	39.4.5'	15.5'	43.7.5'
S.IX/1	31.4'	9.6'	25.1'
Super Universal	50.8'	9.1'	36.11'
T.V	68.10.75'	13.9'	60.6'

Found

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
FBA-2C	36'	8.4'	26.5'

Funk

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Model B-75-L	35'	6.1'	20.5'
Model B-85-C	35'	6.1'	20.1'

GAF

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
N22B NOMAND 11	54' 2"	18' 2"	41' 3"

GAF Nomad

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
N24A	54.2'	18.2'	47.1'

Gates

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
24 B	35' 7"	12' 7"	43' 3"
24 D (1973 Thru 1975)	35' 7"	12' 3"	43' 3"
24 D (Thru 72)	35' 6"	12' 6"	43' 3"
25 B & C (THRU 72)	35' 6"	12' 6"	47' 6"

Gates Learjet

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
23 TWIN JET	35' 8"	12' 3"	43' 3"
24 TWIN JET	35' 8"	12' 6"	43' 3"
24C	35' 8"	12' 6"	42' 3"
24D	35' 8"	12' 3"	43' 3"
24E	35' 8"	12' 3"	43' 3"
24F	35' 8"	12' 3"	43' 3"
25B	35' 7"	12' 3"	47' 7"
25B, C	35' 7"	12' 6"	47' 7"
25C	35' 7"	12' 3"	47' 7"
25D, F	35' 7"	12' 3"	47' 7"
25G	35' 7"	12' 3"	47' 7"
28 LONGHORN	43' 10"	12' 3"	47' 6"
29 LONGHORN	43' 10"	12' 3"	47' 6"
Learjet 40	47.9'	14.1'	55.5'
Learjet 23	35.7'	12.7'	43.3'
Learjet 24F	35.7'	12.3'	43.3'
Learjet 24XR	35.7'	12.3'	43.3'
Learjet 25D	35.7'	12.3'	47.7'
Learjet 40XR	47.9'	14.2'	55.7'
Learjet 45	47.10'	14.1'	58'
Learjet 45XR	47.10'	14.1'	58'
Learjet 55B	43.10'	14.8'	55.1'
Learjet 60	43.9'	14.8'	58.8'
Learjet 60XR	43.9'	14.8'	58.8'
Learjet 70/75	50.11'	14.3'	58'
Learjet 85	61.6'	19.11'	68.1'
MODEL 31	43' 8"	12' 3"	48' 8"
MODEL 35	39' 6"	12' 3"	48' 7"
MODEL 35A	39' 6"	12' 3"	48' 7"
MODEL 36	39' 6"	12' 3"	48' 7"
MODEL 36A	39' 6"	12' 3"	48' 7"
MODEL 55	43' 9"	14' 8"	55' 2"

Gippsland

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
GA-200	39.3.75'	7.7.75'	24.6.5'
GippsAero GA 10	40.7'	12.9'	33.6'
GippsAero GA8 Airvan	40.3'	12.9'	29.4'

Glasair

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Glasair 1	24.4'	6.2'	19.6'
Glasair III	23.3'	7.2'	21.4'
GlaStar	35'	7'	22'
Merlin LSA (In production)	?	?	?
Sportsman 2+2	35'	6.11'	23'
Super II RG	23.3'	?	20.8'

Gobosh

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
700S	27.4'	7.4'	20.6'
800XP	36.6'	6.11'	20.4'
AT-4 LSA	27.4'	7.3'	20.5'

Grob Aircraft

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
G180 SPn	48.9'	16.9.5'	48.7'
Vigilant T1 G109B	57.09'	5.58'	26.57'

Grumman

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
AA-1A Yankee Clipper	24.5'	6.8'	19.24'
AA1	24.5'	6.8'	19.3'
AG-5B Tiger	31.6'	8'	22'
American Lynx	24.5'	6.7'	19.2'

Gulfstream

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
100 JET PROP	52' 0"	16' 11"	42' 11"
1000 Jet Prop	52' 1"	14' 11"	42' 11"
112A	32' 0"	8' 5"	24' 10"
112B	35' 6"	8' 5"	25' 0"
112TC, A ALPINE	35' 6"	8' 5"	25' 0"
114A, Gran Turrismo	32' 9"	8' 5"	25' 1"
116A GRAN TURISMO	32' 8"	8' 5"	25' 0"
500A	49' 6"	16' 6"	35' 10"
500B	49' 6"	16' 6"	35' 10"
500S SHRIKE COMMANDER	49' 6"	16' 6"	36' 10"
500U	50' 0"	16' 6"	35' 0"
560	44' 1"	14' 5"	35' 5"
560 A-HC	49' 0"	14' 5"	35' 1"
560A	44' 0"	16' 5"	35' 0"
560E	49' 0"	16' 5"	35' 0"
560F	49' 5"	16' 5"	35' 0"
680 FLP COURSER	49' 3"	16' 6"	41' 6"
680 FLP GRAND	49' 6"	16' 6"	41' 3"
680 FLP PRESS. GRAND	49' 6"	16' 8"	41' 3"
680 SUPER	44' 0"	16' 5"	35' 0"
680E	49' 0"	16' 5"	35' 0"
680F	49' 5"	16' 5"	35' 0"
680T PROP JET	49' 6"	16' 6"	41' 3"
680W TURBO II PROP JET	44' 0"	16' 6"	43' 0"
681 HAWK TURBO COMM.	44' 0"	16' 6"	43' 0"
685 PRESSURIZED	46' 6"	16' 11"	43' 0"
690A, Prop Jet (690 Lgt 43' & Hgt 14'11")	46' 7"	14' 10"	44' 4"
690B I, II JET PROP	46' 8"	16' 11"	44' 5"
720 ALTI CRUISER	49' 0"	16' 6"	35' 0"
840 JET PROP	52' 0"	16' 11"	42' 11"
980 JET PROP	52' 0"	16' 11"	42' 11"
AA1 C, T-CAT	24' 5"	7' 0"	19' 3"
AA1 YANKEE	24' 5"	7' 0"	19' 3"
AA1A TRAINER	24' 5"	7' 0"	19' 3"
AA1B TRAINER	24' 5"	7' 0"	19' 3"
AA1C / T-cat	24' 5"	7' 6"	19' 2"
AA1C LYNX	24' 5"	7' 0"	19' 3"
AA5 TRAVELER	31' 6"	8' 0"	22' 0"
AA5A Cheetah (Prior '79 Hgt. 8'0")	31' 6"	7' 6"	22' 0"
AA5B CHEETAH	31' 6"	8' 0"	22' 0"
AA5B TIGER	31' 6"	8' 0"	22' 0"
G I	78' 5"	23' 5"	63' 8"
G II	77' 10"	24' 6"	79' 11"
G III	77' 10"	24' 6"	88' 4"
G IV	77' 10"	24' 10"	88' 5"
G V	96' 6"	25' 10"	96' 5"
G100	54.7'	18.2'	55.7'
G150	55.7'	19.1'	56.9'
G164A-220 AG CAT	35' 8"	10' 8"	24' 4"
G164A-245 AG CAT	35' 8"	10' 8"	24' 4"
G164A-275 AG CAT	35' 8"	10' 8"	24' 4"
G164A-300 AG CAT	35' 8"	10' 8"	24' 4"
G164A-450 AG CAT	35' 11"	11' 0"	24' 4"
G164A-600 AG CAT	35' 11"	11' 10"	24' 4"
G164B-450 AG CAT	42' 5"	12' 1"	27' 8"
G164B-525 (Design Sprayer). (Prior '78 Lgt. 25'11")	42' 3"	10' 9" ??	26' 1"
G164B-600 AG CAT	42' 5"	12' 1"	27' 8"
G164C-600 AG CAT	42' 5"	12' 1"	30' 0"
G200	58.1'	21.5'	62.3'
G250	63'	21.4'	66.10'
G280	63'	21.4'	66.10'
G350	77.10'	25.2'	89.4'
G400	77.10'	24.5'	88.4'
G450	77.10'	25.2'	89.4'
G550	93.6'	25.10'	96.5'
G600	94.2'	25.3'	96.1'
G650	99.7'	25.4'	99.9'
G650ER	99.7'	25.8'	99.9'
GA-7 Cougar	36.10'	10.4'	28.8'
GA7 COUGAR TWIN	36' 9"	10' 4"	29 7"
GIV-SP	77.10'	24.5'	88.4'
MODEL 112	32' 0"	8' 5"	24' 10"
MODEL 114	32' 9"	8' 5"	25' 1"
MODEL 116	32' 8"	8' 5"	25' 0"
MODEL 500	49' 0"	16' 5"	35' 0"
MODEL 520	44' 0"	16' 5"	35' 6"
MODEL 560	44' 0"	16' 5"	35' 5"
TR-2AA1B	24' 5"	7' 6"	19' 0"

Handley-Page

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Basic Trainer	37'	9.6.5'	29.11'
Dart Herald 200	94.9.5'	24'	75.6'
Hermes IV	113'	30'	96.10'
Jetstream Series 200	52'	17.5'	47.2'
Marathon 1	65'	14.1'	52.1.5'

Harmon

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Rocket II	21.10'	5.6'	21.6'

Helio Aircraft Company

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
AU-24 Stallion/H-550A	41'	9.3'	39.7'
U-10D Super Courier	39'	8.10'	30.8'
U-5A Twin Courier	41'	8.10'	32'

HFB

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
320 HASNSA	47' 6"	16' 2"	54' 0"
BV 138	88.4.5'	19.4'	65.1.5'
BV 141 B-02 (V10)	57.3'	11.10'	45.9'
BV 142 V2/U1	96.11'	14.7'	67.2'
BV 222C-09	150.11'	35.9'	121.5'
Ha 135	32.6'	?	22.5'
Ha 136	21.8'	7.7'	18.4'
Ha 137	36.7'	9.2'	31'
Ha 139B/Umbau	96.9'	15.9'	65.10'
Ha 140 V2	72.2'	10'	54.11'
HFB 209	93.8'	29.8'	76.6'
HFB 314	93'	26.10'	119'
HFB 320 Jet	47.6'	16.2'	54.6'

Higher Class Aviation

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Hornet	27.6'	6'	20'
Sport Hornet LRS	30'	9'	21.5'

Hiller helicopters

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
FH-100	35.5'	9.3.5'	27.9.5'
OH-23D Raven	35.5'	9.9.5'	27.9.5'
UH-12E	35.3'	10.1'	28.5'
YH-32 Hornet	32'	7.10'	23.8'

Honda

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
HA-420 HondaJet	39.8'	14.9'	42.6'
HondaJet Elite	39.76'	14.9'	42.62'

Howard Aircraft Corp.

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
500 Business	72.4'	13.7'	58.5.5'
DGA-15P	38'	8.5'	25'

Hughes

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
500	26' 5"	8' 4"	30' 10"
AH-6C helicopter	27.4'	8.6'	30.10'
D-2	60'	27.4'	57.10'
MD 530 helicopter	27.4'	8.9'	32.7'
Model 269A	25'	7.11'	28.11'
Model 369 helicopter	26.4'	7.87'	30.8'
Model 369HS helicopter	26.4'	8.2'	30.10'
Model 500C helicopter	26.4'	8.2'	30.10'
Model 500D helicopter	26.4'	8.2'	30.10'
Model 500E helicopter	26.4'	8.4'	30.8'
Model 520N helicopter	27.4'	9'	25.6'
Model 530F Lifter helicopter	26.4'	8.9'	24.7'
Model 600N helicopter	27.6'	8.8'	29.6'
Model MH 902 Explorer helicopter	33.10'	12'	32.4'
OH-6 Cayuse helicopter	26.4'	8.2'	30.4'
XF-11	101.5'	?	65.3'

Husky

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Aviat A-1B	35.6'	?	22.7'

IAR

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Model 823	32.10'	8.3'	27'

ICON

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
A5 Amphibious Lite Sport	34.8'	8.1'	23'

Ikarus

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
C42	31'	7.4'	20.6'
C52 Club	31'	7.4'	20.11'

Interstate

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
S-1B1	35.6'	7'	23.5'

Israel

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
1121 JET COMMANDER	43' 3"	15' 8"	50' 5"
1124 Westwind 1	44' 8"	15' 9"	52' 3"
1124 WESTWIND II	44' 8"	15' 10"	52' 3"
1124A WESTWIND II	44' 8"	15' 10"	52' 3"
ASTRA	52' 8"	18' 2"	55' 7"
CJ 1121B COMMODORE JET	43' 3"	15' 8"	50' 5"
CJ 1123	44' 8"	15' 10"	52' 3"
WESTWIND II	44' 10"	15' 10"	52' 3"

Israel Aircraft Industries (IAI)

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Astra SP	52' 8"	18' 2"	55' 7"

Jabiru

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Calypso 2200	31.4'	7.2'	19.4'
Calypso 3300	31.4'	7.2'	19.6'
J160	26.8'	7.6.5'	19'
J1600	22.6'	18.6'	20.9'
J170	31.8'	7.7'	18.11'
J2200	22.9'	17.5'	22'
J230	31.4'	7.10'	21.6'
J250	30'	7.10'	21.5'
J250 LSA	30'	7.10'	21.5'
J3300	22.9'	17.5'	26.5'
J430	30.11'	7.10'	21.6'
J450	30'	7.10'	21.5'
J5100	26'	17.5'	37.8'

Just Aircraft

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Just Escapade	28.6'	5.9'	19'
SuperSTOL	30.1'	8'	19'

Kawasaki

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
88-II	49.3'	11.2'	42'
92-I	31.4'	10.2'	23.1.5'
AH-6C helicopter	27.4'	8.6'	30.10'
BK 117 B-2 hellcopter	36.1'	12.8'	32.6'
C-2 transport	145.8'	46.7'	144'
KH-4 helicopter	37.1.5'	9.4'	32.7.25'
KI-10-II	32.10.5'	9.10'	23.8'
Ki-100-1a / b Goshikisen	39.4'	12.4'	28.11'
Ki-102b	51.1'	12.2'	37.7'
Ki-3	42.8'	9.10'	32.9.6'
Ki-32	49.2.5'	9.6'	38.2.5'
KI-45 KAIc	49.4'	12.2'	36.1'
KI-48-Iia	57.3'	12.5'	41.9'
KI-56	65.6'	11.9'	48.10'
Ki-61-I-KAIc	39.4'	12.2'	29.4'
OH-1 helicopter	38.1'	12.6'	39.4'
P-2J	101.3.5'	29.3.5'	95.11'
T-4	32.7'	15.1'	42.8'

Kitfox

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Classic IV	32'	5.8'	18.5'
KIS Super Cruiser	29'	7.5'	23.5'
Lite 2	25.2'	5.2'	16.5'
Lite Squared	32'	5.8'	18.5'
Model 1	32'	67"	?
Model 2	32'	67"	?
Model 3	32'	67"	?
S7 Super Sport	32'	5.8'	19.8'
Series 5 TW	32'	97"	22'
Series 5: Outback, Safari & Vixen	32'	97"	22'
Series 6	32'	97'	22'
Series 7	32'	8'	19.8'
Speedster	28.7'	6.6'	18.3'
Sport	29'	5.8'	19.8'
Sport 150 KIS (Pulsar)	23'	7'	22'
XL	32'	68"	?

Lake

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
C IV AMPHIBIAN	34'	8' 1"	23' 6"
C-I AMPHIBIAN	34' 0"	8' 10"	23' 6"
C-VI AMPHIBIAN	34' 0"	8' 10"	23' 6"
LA-250 Seawolf	38'	10'	28.4'
LA-4 200 BUCCANEER	38' 0"	9' 4"	24' 11"
LA-4 AMPHIBIAN	38' 0"	9' 4"	24' 11"
LA-4 SEAPLANE	38' 0"	9' 4"	24' 11"
LA-4 TURBO LAKE	38' 0"	9' 4"	24' 11"

Lancair

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
320 / 360	23' 5"	7' 6"	21' 0"
Air Express	42.6'	8.4.5'	27.6'
Barracuda	25.6'	8'	22'
Columbia 300 / 350 / 400	36' 1"	9' 0"	25' 2"
ES / ES? P	35' 5"	8' 0"	25' 0"
Evolution with PT6	37'	10'	30'
Explorer 4	48.6'	8.2'	27.6'
IV-P	35.6'	?	25'
Legacy	25' 5"	7' 6"	22' 0"
LX&, LX7-20, LX7-20A, LX-A	34'	?	25'
Mako	36.6'	7.66'	25'
P4	30' 2"	8' 0"	26' 0"
PropJet P4	30' 2"	8' 0"	26' 0"
Tigress	30.2'	?	25'
Vega 5	41'	6.5'	28.6'

Let Kunovice

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
L 410 UVP-E20	65.55'	19.55'	47.3'
L-200D	40.4.5'	7.4'	28.3'
L-610	84'	27.10'	72.3'

Liberty

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
XL2	28'	7.5'	20.4'

Lockheed

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
1329 JETSTAR	54' 5"	20' 5"	60' 5"
1329-25 JETSTAR	54' 5"	20' 5"	60' 5"
AH-56 CHEYENNE Helicopter	51.3'	13.8.5'	54.8'
C-130H HERCULES	132' 7"	38' 3"	97' 9"
C-141B STARLIFTER	160'	39.3'	168.4'
C-5 GALAXY	222.9'	65.1'	247.1'
F-104G	21.9'	13.6'	54.8'
F-117 NIGHTHAWK	43.4'	12.9.5'	65.11'
F-16 FIGHTING FALCON	32.8'	16'	49.5'
F-94C STARFIRE	42.5'	14.11'	44.6'
HUDSON MK I	65.6'	11.10'	44.4'
JetStar II	54.5'	20.5'	60.5'
L 1011-1 TRI STAR	155' 4"	55' 4"	177' 9"
L-1049G SUPER CONSTELLATON	126.2'	24.9'	116.2'
L-1649A STARLINER	150'	23.4'	116.2'
L-188 ELECTRA	99'	32' 10"	104' 6"
L-193 CONSTELLATION	104'	36.8'	112.2'
Model 33 - LITTLE DIPPER	25'	7'	17.6'
Model 34 - BIG DIPPER	31'	8.10'	22.2'
P-3 ORION	99.8'	38.8'	116.10'
P-80C F-80C SHOOTING STAR	38.9'	11.3'	34.5'
R6V CONSTITUTION	189.1'	50.4.5'	156.1'
S-3A VIKING	68.8'	22.9'	53.4'
SATURN	74'	19.10'	56.6'
T-33 SHOOTING STAR	38.10.5'	11.8'	37.9'
T2V SeaStar T2V-1	42.10'	13.4'	38.6.5'
XF-90A	40'	15.9'	56.2'
XH-51A Helicopter	35'	8.2'	40.9'
YF-22 RAPTOR	43'	17.9'	64.6'
YO-3A QUIET STAR	57'	?	29.4'
YP-24	42.9.5'	8.6'	28.9'

Luscombe

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
8A	35' 0"	6' 0"	19' 8"
8E	35' 0"	6' 3"	19' 8"
8F	35' 0"	6' 3"	20' 0"
Model 10	25'	?	17'
Model 11 Sedan	38'	6.10'	23.6'
Model 4/90 Sprite	32.1'	6.6'	20.11'
Phantom	31'	6.9'	21.6'

Magnaghi Aeronautica

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Sky Arrow 600 Sport	31.6'	8.5'	24.10'
Sky Arrow 650	31.9'	8.5'	24.11'
Sky Arrow LSA	31.5'	8.4'	24.9'

Magnus

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Fusion 212	28'	?	22'

Marquart

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
MA-4 Lancer	20'	?	16.4'
MA-5 Charger	24'	7.6'	19.6'

Martin

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
2-0-2	93.3'	28.5'	71.4'
4-0-4	93.3'	28.5'	74.7'
AM-1 Mauler	50'	16.10'	41.3'
B-10B	70.6'	15.5'	44.9'
B-26G Marauder	71'	21.6'	58.3'
BM-2	41'	12.4'	28.9'
GR.V Baltimore	61.4'	14.2'	48.6'
Mk I Maryland	61.4'	16.3'	46.8'
P4M Mercator	114'	26.1'	85.2'

Maule

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
M-20C Ranger ('77-78)	35' 0"	8' 4"	23' 2"
M-4 & M-4C Jetasen	29' 8"	6' 2"	22' 0"
M-4 180C ASTRO ROCKET	29' 9"	6' 0"	22' 6"
M-4 210C ROCKET	29' 9"	6' 0"	22' 0"
M-4 220C STRATA ROCKET	29' 9"	6' 0"	22' 0"
M-4, M-4C JETASEN	29' 9"	6' 0"	22' 0"
M-5 210 LUNAR ROCKET	30' 10"	6' 4"	22' 8"
M-5 220C LUNAR ROCKET	30' 10"	6' 4"	23' 0"
M-5 235C	30' 10"	6' 4"	23' 6"
M-5-235C Strata Rocket	30.10'	6.2.5'	23.6'
M-7-25	33.6'	6.3'	23.6'
M-9	32.11'	6.4'	23.8'
MX-7	32.11'	6.4'	23.8'
MXT-7	32.11'	8.4'	23.8'

McDonnell Douglas

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
C - 9B	93.5'	27.6'	119.3'
DC - 10	155.4'	57.6'	182.3'
DC - 9	107.8'	30.6'	152.6'
MD - 81/82/83/88	107.8'	Tail: 29.7'	147.8'
MD - 87	107.8	Tail: 30.4'	130.4'
MD - 90	107.8'	30.6'	152.6'

McDonnell-Douglas

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
MD-11	170'	57' 11"	201'

MD Helicopters

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
MD 500E	26.4'	9.2	30.8
MD 520N	27.3'	9.6'	31.4'
MD 530F	27.5'	8.7'	32'
MD 530F Armed Warrior	27.5'	8.65'	32'
MD 530G B11	27.5'	8.7'	32'
MD 902 Explorer	33.8'	10.9'	40.5'
MD 969 Armed Twin	33.8'	10.9'	35'

Messerschmitt

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Bf 108B	34.5'	7.6'	27.2'
Bf 109G-6	32.6'	8.2'	29.7'
M.23b	38.8.5'	7.6.5'	20.10'
Me 163B-1a Komet	30.6'	8.2'	18.8'

Meyers

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
200D	30.6'	7.4'	24.4'
MAC-145	30'	8.6'	21.4'
OTW-160	30'	8.6'	25.11'

Micco

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
SP-20	30'	6.6'	21.10'
SP26/N149MA	30.4'	6.6'	24.1'

Mitsubishi

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
1MF10	32.10'	10.10'	22.8'
1MF3	27.10.5'	10.2'	22.7.5'
1MF9	35.5'	11.2'	27.8'
1MT	43.6'	14.7.5'	32.1'
2MB1	48.7'	11.11'	32.10'
2MB2	65.7'	13.5'	32.4'
2MR	39.6'	9.6'	26'
2MR8	41.10'	11.5'	27.11.5'
2MT2	48.5.5'	11.6'	32.1'
3MT5	67.11'	15.5'	39.6'
A5M4	36.1'	10.6'	24.9.5'
A6M2 Model 21 Zero	39.4'	10'	29.8'
A7M2 Reppu	45.11'	14'	36.1'
B2M1	49.11'	12.2'	33.8'
B5M1	50.2'	14.2'	33.9'
F1M2	36.1'	13.1.5'	31.2'
G3M2 Model 21	82'	12.1'	54'
G4M1, Model 11	81.8'	16.1'	65.6'
J2M3-21 Raiden	35.5'	13'	32.8'
K3M3	51.9'	12.6'	31.4'
Ki-1-I	86.11'	16.2'	48.7'
Ki-15-I	39.5'	11'	28.7'
Ki-2-I	65.3'	15.1'	41.4'
Ki-21-Iib	73.10'	15.11'	52.6'
Ki-30	47.8.75'	11.11.75'	33.11.5'
Ki-46-II	48.3'	12.9'	36.1'
Ki-51	39.5'	8.11.5'	30.3'
Ki-57-II	74.2'	15.11.5'	52.10'
Ki-67-Ib	73.10'	25.3'	61.4.5'
MARQUISE MU-2B-60	39' 2"	13' 8"	39' 5"
MR170 Jet	95.10'	Tail: 34.2'	109.8'
MRj90 Jet	95.10'	Tail: 34.2'	117.5'
MU-2B, MU-2D	39' 2"	13' 0"	33' 3"
MU-2F	39' 2"	12' 11"	33' 3"
MU-2G	39' 2"	13' 8"	39' 5"
MU-2J	39' 2"	13' 8"	39' 5"
MU-2K	39' 2"	12' 11"	33' 3"
MU-2L, MU-2N	39' 2"	13' 8"	39' 5"
MU-2M, MU-2P	39' 0"	12' 11"	33' 3"
MU-300 DIAMOND I	43' 6"	13' 11"	48' 5"
SOLITAIRE MU-2B-40	39' 0"	12' 11"	33' 3"

Mooney

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
20J, 201	36' 0"	8' 4"	24' 8"
231 M20K TURBO	36' 0"	8' 4"	25' 5"
252	35' 0"	8' 5"	24' 4"
A2-A CADET	30' 0"	6' 3"	20' 0"
M-10 CADET	30' 0"	7' 8"	20' 8"
M-18 MITE	26' 10"	6' 0"	18' 0"
M-20 A MARK 20A	35' 0"	8' 3"	23' 1"
M-20-B Mark 21	35' 0"	8' 4"	23' 2"
M-20-C Mark 21	35' 0"	8' 4"	23' 2"
M-20-C Ranger (Thru '76)	35' 0"	8' 4"	23' 2"
M-20-D Master	35' 0"	8' 4"	23' 2"
M-20-E Super 21	35' 0"	8' 4"	23' 2"
M-20-Mark 20	35' 0"	8' 3"	23' 1"
M-20C RANGER	35' 0"	8' 4"	23' 3"
M-20E CHAPARREL	35' 0"	8' 4"	23' 0"
M-20F EXECUTIVE	36' 0"	8' 4"	24' 0"
M-20G STATESMAN	35' 0"	8' 4"	24' 3"
M-20TN Acclaim	36'3"	8' 4"	26' 9"
M-22 PRESSURIZED	35' 0"	9' 0"	26' 0"
M-31 M20K TURBO	36' 1"	8' 4"	25' 5"
M20 Acclaim Ultra	36.6'	8.4'	26.8'
M20J "201" (Prior '81 Wing Span 35' 0")	36' 1"	8' 4"	24' 6"
M20M BRAVO	36.1'	8.4'	26.9'
M20U Ovation Ultra	26.8'	8.4'	26.8'
M20V Acclaim Ultra	26.8'	8.4'	26.8'
M22 MUSTANG	35'	9.10'	27'
TBM 700	39.11'	13.1'	34.1'

Murphy

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Elite	30.4'	?	22.4'
Maverick	29.6'	?	20.8'
Moose M-14P tailwheel	36'	6.6'	23'
Rebel	30'	?	21.4'
Renegade II	21'	6.5'	18.5'
Super Rebel	36'	8.9'	24'

Navion

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
A	33' 3"	8' 5"	27' 3"
B	33' 3"	8' 5"	27' 3"
G, G-1 Rangemaster	34' 5"	8' 5"	27' 5"
G, G-1 RANGER	34' 5"	8' 5"	27' 5"
H RANGE MASTER	34' 9"	8' 6"	27' 5"
L-17	33.5'	8.8'	27.8'
L-17 NAVION	33.5'	8.8'	27.8'
L-17B	33.4'	8.8'	27.3'
RANGEMASTER	34.6'	8.6'	26.7'
Super 260 NAVION	33.5'	8.8'	27.6'

NH Industries Helicopters

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
NH90	53.5'	17.4'	64.2'

Noorduyn Aviation

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Norseman C-64	51.6'	10.3'	32'
Norseman I & III	51.8'	10.1'	32.4'
Norseman Mark IV	51.8'	10.1'	31.9'
Norseman Mark V	51.6'	10.1'	32.4'
Norseman Mark VI	51.6'	10.1'	32.4'
UC-64R	51.6'	10.1'	31.9'

Nord

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
1002 Pingouin	34.10'	7.6.5'	27.2'
1101 Noralpha	37.8'	10.8'	28'
1203 Norecrin II	33.6.25'	9.6'	23.8'
1402 Noroit flying boat	103.8'	22.5.5'	74.4'
1402A Gerfaut	21.7'	18'	36'
1500 Noreclair	64.8'	21.5'	46.9'
260 Super Broussard	71.11'	21.7'	57.9'
3400 Norbarbe	42.7.75'	7.3'	27.8'
N 3202 trainer	31.2'	9.3'	26.8'
N-2500 / N2501 Noratlas	106.8'	19.8'	72.1'
NC.856A Aerocentre	40'	7'	24'
Olympia Meise 51 glider	49.3'	?	23.11'

North American

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
A-27	42'	12.2'	29'
A-36A Apache	37.25'	12.2'	32.3'
A-5A Vigilante	53'	19.5'	76.6'
AJ-1	71.5'	20.5'	63.1'
B-1B Lancer	137'/79' (Swept)	34'	146'
B-25H Mitchell	67.7'	16.4'	52.11'
B-45A Tornado	89'	25.2'	75.4'
BT-9	42'	13.7'	28'
F-100D Super Sabre	38.9'	16.2.75'	50'
F-82G Twin Mustang	51.3'	13.10'	42.5'
F-86D-40-NA Sabre	37.1.5'	15'	40.3'
F-86F-40-NA Sabre	37'	14.1'	37.1'
FJ-1 Fury	38.2'	14.10'	34.5'
FJ-4 Fury	39.1'	13.11'	36.4'
NA-16	42'	?	27.7'
NA-68 / P-64	37.3'	19.8'	27'
O-47A	46.4'	12.2'	33.7'
OV-10A Bronco	40'	15.2'	41.7'
P-51D Mustang	37'	13.4.5'	32.3'
Super 260 Navion	33.5'	8.8'	27.6'
T-28D Trojan	40.1'	12.8'	33'
T-2C Buckeye	38.1.5'	14.9.5'	38.3.5'
T-6G Texan / Harvard	42'	11.8'	29'
T3J-1 / T-39D Sabreliner	44.6'	16'	44'

Northrop

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
A-17	47.8.5'	11.10.5'	31.9'
Alpha 2	41.10'	9'	28.5'
Beta	32'	?	21.8'
BT-1	41.6'	9.11'	31.8'
Delta 1D-5	47.9'	10.1'	33.1'
F-89D Scorpion	59.8.5'	17.6'	53.9.5'
Gamma 2D Polar Star	47.9.5'	9'	31.2'
N-3PB Nomad	48-11'	12'	36'
P-61B-20-NO Black Widow	66'	14.8'	49.7'

Pacific Aerospace

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Cresco 08-600	42'	?11.10.75'	36.2'
CT-4E AirTrainer	26'	8.5'	23.5'
E-350 Expedition	38.2'	8.4'	26.5'
P-750 Xstol III	42'	13.25'	38.8'

Paradise

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Eagle, P-4, P2S (No information)	?	?	?
P1	31'	?	20.6'
P1 LSA	29.6'	?	?

Partenavia

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
P.53 Aeroscooter	27.2'	5.7'	16.10'
P.55 Tornado	23.7'	5.11'	19.8'
P.57 Fachiro	30'	7.11'	21.9'
P.59 Jolly	33.6'	6.11.5'	21.6'
P.66C Charlie	32.9.25'	9.1'	23.9'
P.68C	39.4.5'	11.2'	31.4'
P.86 Mosquito	32.10'	10.4'	21.5'

Peterson

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
King Katmai / Kenai	39'	9.4'	29'

Piaggio

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
AVANTI	47' 3"	13' 1"	47' 2"
P.180 AVANTI EVO	46'	13'	47.3'
P1HH Hammerhead	51.2'	13.05'	47.3'

Pilatus

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
B-4-PC11 (Glider)	49.3'	5.2'	21.7'
P-2-05	36.1'	8.10.5'	29.9'
P-3-03	34.1'	10'	28.8'
P-4	38.11'	8.2'	28.3'
P-5	39.4'	8.2'	30.2'
PC 61 B2-H4	52' 1"	10' 6"	35' 9"
PC 61, B2-H4	52' 0"	10' 6"	36' 1"
PC 7 TURBO TRAINER	33' 2"	10' 10"	33' 3"
PC 9	33' 2"	10' 8"	35' 1"
PC-12 NG	53.4'	14'	47.3'
PC-21	29.11'	12.4'	36.11'
PC-24	55.9'	17.9'	55.3'
PC-6 B2 Turbo-Porter	52.1'	10.6'	36.1'
PC-8D Twin Porter	51.2'	11.10'	34.5'
PCXII	53' 3"	14' 0"	47' 3"
SB-2	50.10'	10.6'	21.11'

Piper

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
700P	36.8'	12.1'	34.9.75'
ARCHER	35.5'	7.3'	24'
ARCHER DX	35.5'	7.3'	24'
CZAW SportCruiser	28.3'	7.7'	21.9'
J-2 CUB	35.2.5'	6.8'	22.5'
J-4A CUB COUPE	36.2'	6.10'	22.6'
J-5 CUB	35.6'	6.10'	22.6'
j2	36'	7'	23
J3 CUB	35' 3"	6' 8"	22' 5"
M350	43'	11.3'	28.11'
M500	43'	11.3'	29.6'
M600	43.16'	11.3'	29.7'
PA 14 CRUISER	35' 9"	6' 5"	23' 2"
PA-15 VAGABOND	29.3'	?	18.8'
PA-15/17 VAGABOND	29.3'	6'	18.8'
PA-17	29.2'	6.5'	18.10'
PA-18 95 Super Cub	35' 3"	6' 6"	22' 5"
PA-23 AZTEC	37.2'	10.4'	31.2'
PA-23 B AZTEC	37' 2"	10' 4"	27' 6"
PA-23 C AZTEC	37' 2"	10' 4"	30' 0"
PA-23 C, D TURBO AZTEC	37' 2"	10' 4"	30' 0"
PA-23 D, E AZTEC	37' 2"	10' 4"	31' 0"
PA-23 E TURBO AZTEC	37' 2"	10' 4"	31' 0"
PA-23 F AZTEC	34' 4"	10' 0"	31' 0"
PA-23 F TURBO AZTEC	34' 4"	10' 0"	31' 0"
PA-23-235 Apache	37' 1"	10' 3"	27' 7"
PA-23-250F	37.2.5'	10.4'	31.2.75'
PA-235 B CHEROKEE	32' 0"	7' 3"	23' 8"
PA-24-260 COMMANCHE	36'	7.6'	25'
PA-28 140 Cherokee - High Gross	30' 0"	7' 3"	23' 3"
PA-28 140 Cherokee Cruiser	30' 0"	7' 3"	23' 3"
PA-28 140 Cherokee Low Gross	30' 0"	7' 3"	23' 3"
PA-28 140, B,C,D,E (B-Lot 23'4" & Hgt. 7'4")	30' 0"	7' 3"	23' 3"
PA-28 D 180, E, F, G	30' 0"	7' 3"	23' 5"
PA-28-161 Archer H	35' 0"	7' 5"	23' 10"
PA-28-161 Warrior II	35' 0"	7' 4"	23' 10"
PA-28-180 Challenger & Archer	32' 0"	7' 8"	24' 0"
PA-28-235 B Cherokee	32' 0"	7' 3"	32' 0"
PA-28R, RT, 201 T Turbo Arrow III, V	35' 5"	8' 4"	27' 4"
PA-30 Turbo Twin Comanche	36' 8"	7' 3"	25' 1"
PA-30B TURBO TWIN COM	36' 8"	7' 3"	25' 0"
PA-31 300 Navajo	40' 6"	13' 0"	32' 6"
PA-31-310 Turbo Navajo B, C	40' 8"	13' 0"	32' 7"
PA-31T-620 XL Cheyenne II XL	42' 8"	12' 10"	36' 10"
PA-34-200 C/R Seneca (1972)	38' 11"	9' 11"	28' 6"
PA-35 POCONO	51'	17.5'	42.4'
PA-42-1000 Cheyenne IV	47' 8"	16' 5"	43' 5"
PA-44 180 Seminole	38' 7"	8' 6"	27' 7"
PA-46 MATRIX	43'	11.3'	28.11'
PA-47 PiperJet	44.3'	15.8'	35.8'
PA-48 Enforcer	41.4'	8.9'	34.2'
PA-6 SKY SEDAN	34.8'	7'	26'
PA-600, 600A Aerostar	34' 2"	12' 1"	34' 10"
PA-601 A AEROSTAR	34' 0"	12' 0"	34' 10"
PA-601 B Turbo Chg. Aerostar	36' 8"	12' 1"	34' 10"
PA-601, 601A Turbo Chg. Aerostar	34' 2"	12' 1"	34' 10"
PA-601P Pressurized Aerostar	36' 8"	12' 1"	34' 10"
PA-602 P AEROSTAR	36' 6"	12' 0"	34' 8"
PA-602P Aerostar	36' 8"	12' 1"	34' 9"
PA-8 SKYCYCLE	20'	5'	15.8'
PA11	35' 3"	6' 8"	22' 5"
PA12 SUPER CRUISER	35' 6"	6' 10"	22' 10"
PA16 CLIPPER	29' 3"	6' 2"	20' 1"
PA16 CRUISER	35' 4"	6' 4"	12' 0"
PA18-125 SUPER CUB	35' 3"	6' 7"	22' 7"
PA18-135 SUPER CUB	35' 3"	6' 7"	22' 7"
PA18-150 SUPER CUB	35' 4"	6' 7"	22' 7"
PA18-150 SUPER CUB FL	35' 3"	10' 3"	23' 8"
PA18-95 SUPER CUB	35' 3"	6' 7"	22' 7"
PA20-125 PACER	29' 3"	6' 0"	20' 4"
PA20-135 PACER	29' 3"	6' 0"	20' 4"
PA22-108 COLT	30' 0"	6' 3"	20 0"
PA22-135 TRI-PACER	29' 3"	8' 3"	20' 4"
PA22-150 TRI-PACER	29' 3"	8' 3"	20' 4"
PA22-160 TRI-PACER	29' 4"	8' 4"	20' 7"
PA23-150 APACHE	37' 0"	9' 6"	27' 4"
PA23-160G, H APACHE	37' 0"	9' 6"	27' 4"
PA23-325 APACHE	37' 0"	10' 3"	27' 6"
PA24-1000 CHEYENNE IV	47' 8"	16' 5"	43' 5"
PA24-180 COMANCHE	36' 0"	7' 3"	24 8"
PA24-250, COMANCHE	36' 0"	7' 3"	24' 0"
PA24-260, B260	36' 0"	7' 3"	25' 3"
PA24-400 COMANCHE	36' 0"	7' 0"	25' 8"
PA24-720 CHEYENNE III	47' 8"	16' 8"	43' 5"
PA24-C260 COMANCHE	36' 0"	7' 0"	25' 8"
PA25-150 PAWNEE	36' 0"	7' 0"	27' 6"
PA25-235C, D PAWNEE	36' 2"	7' 2"	24' 9"
PA25-260C, D PAWNEE	36' 2"	7' 2"	24' 9"
PA28 B, C, D, E	30' 0"	7' 3"	23' 3"
PA28 LOW GROSS	30' 0"	7' 3"	23' 3"
PA28 R, RT, 201 TURB ARRO	35' 4"	8' 4"	27' 4"
PA28-151 WARRIOR	35' 0"	7' 3"	23' 7"
PA28-16 CHEROKEE CRU	30' 0"	7' 3"	23' 3"
PA28-161 WARRIOR	35' 0"	7' 4"	23' 9"
PA28-180 CHALLENGER	32' 0"	7' 7"	24' 0"
PA28-180R, RB ARROW	30' 0"	8' 0"	24' 0"
PA28-181 ARCHER II	35' 0"	7' 5"	23' 10"
PA28-200R ARROW II	32' 0"	8' 0"	24' 6"
PA28-200R, RB ARROW	30' 0"	8' 0"	24' 0"
PA28-201T TURBO DAKOTA	35' 0"	7' 6"	25' 0"
PA28-235 C, D, E, F	32' 0"	7' 3"	23' 6"
PA28-235 CHARGER	32' 0"	7' 7"	24' 0"
PA28-235 PATHFINDER	32' 0"	7' 5"	24' 0"
PA28-236 DAKOTA	35' 6"	7' 0"	24' 8"
PA28-4 HIGH GROSS	30' 0"	7' 3"	23' 3"
PA28B, C CHEROKEE	30' 0"	7' 3"	23' 3"
PA28C-150 CHEROKEE	30' 0"	7' 3"	23' 3"
PA28C-160 CHEROKEE	30' 0"	7' 3"	23' 3"
PA28D-180 E, F, G	30' 0"	7' 3"	23' 6"
PA28R-201 ARROW III	35' 4"	8' 4"	27' 0"
PA30B TWIN COMANCHE	36' 0"	7' 3"	25' 0"
PA30C TURBO TWIN COMAN	36' 8"	8' 0"	25' 0"
PA30C TWIN COMANCHE	36' 0"	8' 0"	25' 0"
PA31 PRESS. NAVAJO	40' 6"	13' 3"	34' 8"
PA31-310 TURBO NAVAJO	40' 8"	13' 0"	32' 6"
PA31-325 NAVAJO	40' 8"	13' 8"	32' 6"
PA31-330 NAVAJO	40' 6"	13' 0"	32' 6"
PA31-350 CHIEFTAIN	40' 8"	13' 0"	34' 6"
PA31T-500 CHEYENNE I	40' 8"	12' 8"	34' 8"
PA31T-620 CHEYENNE II	42' 8"	12' 10"	36' 10"
PA31T-620 CHEYENNE II	42' 8"	12' 8"	34' 8"
PA32-260	32' 8"	8' 0"	27' 6"
PA32-260 C, D, E	32' 8"	7' 8"	27' 6"
PA32-300	32' 9"	8' 0"	27' 8"
PA32-300B, C, D, E	32' 8"	7' 8"	27' 6"
PA32-301 SARATOGA	36' 0"	8' 0"	27' 8"
PA32-301 TURBO SARATOG	36' 0"	8' 0"	28' 0"
PA32R, RT II-300 LANCE	32' 10"	9' 6"	28' 8"
PA32R-301 SARATOGA	36' 0"	8' 6"	27' 8"
PA32R-301T TURBO SARA	36' 0"	8' 6"	28' 4"
PA32RT-300T TURBO LANCE	32' 10"	9' 6"	29' 0"
PA34-200C, R SENECA	38' 11"	9' 11"	28' 6"
PA34-220T SENECA III	38' 11"	9' 11"	28' 6"
PA34-220TC, R SENECA	38' 11"	9' 11"	28' 6"
PA34-220TC, R TURBO SEN.	38' 11"	9' 11"	28' 6"
PA36-285 BRAVE	39' 0"	7' 4"	27' 4"
PA36-300 BRAVE	38' 9"	7' 6"	26' 9"
PA36-375 BRAVE	38' 0"	7' 6"	27' 6"
PA38 TOMAHAWK	34' 0"	9' 0"	23' 0"
PA39 C, R TURBO TWN COM	36' 10"	8' 3"	25' 2"
PA39 C, R TWIN COMANCHE	36' 10"	8' 3"	25' 2"
PA42-720 CHEYENNE III	47' 8"	14' 9"	43' 5"
PA44-180 SEMINOLE	38' 7"	8' 6"	27' 8"
PA44-180T TURBO SEMINOL	38' 7"	8' 6"	27' 8"
PA46-310P MALIBU	43' 0"	11' 4"	28' 11"
PA46-350P MALIBU MIRA	43' 0"	11' 4"	28' 11"

Pipistrel

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Alpha Trainer	34.6'	?	?
Apis	43.8'	4.1'	20.10'
Apis-Bee motorglider	49.1'	4.3'	20.6'
Panthera	35.8'	7.2'	26.6'
Sinus 912	49.1'	5.7'	21.8'
Spider	34.5'	?	?
Taurus	49.1'	4.8'	23.10'
Twister	32.10'	?	?
Virus SW 100 912	36.1'	6.1'	19.10'
WATTsUP	34.5'	?	21.4'

Pitts

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
S-17	17.4'	6.3'	15.6'
S-1S Special	17.4'	6.3'	15.6'
S-2B	20'	6.7.33'	18.9'
S-2C	20'	6.5'	17.9'

Porterfield

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
CP-65	34.9'	6.11'	22.8'
Model 35-70 Flyabout	32'	6.7'	20.3'

PZL

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
101 Gawron	41.7'	10.3'	29.6.5'
104 Wilga 35A	36.5'	9.6'	26.6'
106BR Kruk	48.10.5'	10.10.77'	30.4.5'
112 Junior	28.11'	8.7'	21.10'
130TC II Orlik	32.10'	11.7'	30.6'
23A Karas	45.9'	10.10'	31.9'
37B Los	58.10'	16.9'	42.5'
43A Karas	45.9'	10.10'	32.8'
L.2	44'	8.10'	26'
M-15 Belphegor	73.3.75'	17.6.5'	41.8.75'
M-20 Mewa	38.11'	9.11'	28.7'
M-24B Dromader Super	65.3.75'	12.5.5'	35.5'
M18B Dromader	58.1'	12.2'	31.1'
M26 01 Iskierka	28.3'	9.9'	27.3'
M28 Skytruck	72.4'	16.08'	43'
P.11c	35.2'	9.4'	24.9'
PZL P.7	34.8'	8.10'	22.11'
PZL-5a	27.7'	8.4'	22'
TS-8 Bies	34.5'	9.10'	28.5.5'

Quest Aircraft

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Kodiak	45'	15.3'	34.2'

Rainbow Aircraft

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Cheetah	31.6'	6.3'	18.7'

Rallye

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
100 ST/100 T	31' 11"	9' 2"	23' 1"
100, 150, 235 GT	31' 11"	9' 2"	23' 9"
180 GT	3' 11"	9' 2"	23' 9"
MS 880	31.12'	12.6'	20.4'
RALLYE 100 SM/100 T	31' 11"	9' 0"	23' 0"
RALLYE 150 ST	31' 11"	9' 0"	23' 8"

Rans

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
S-10 Sakota	24'	4.10'	17.10'
S-11 Pursuit	20'	?	18'
S-12XL Airaile	31'	7.4'	21.8'
S-16 Shekari	24'	5.5'	18.8'
S-18 Stinger II	31'	6.75'	22.1'
S-19LS Venterra	28'	7.11.5'	19.10.75'
S-20 Raven taildragger	30.3'	6.7'	21'
S-21 Outbound	28'	7.8'	22.4'
S-4 & S-5 Coyote	29.6'	?	17'
S-6ES Coyote	34.6'	7.8'	20'
S-7S Courier	29.3'	6.4'	23.3'
S-9 Chaos	22'	4.10'	15.8'

Raytheon

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Raytheon Hawker 1000	51' 5"	17' 2"	53' 10"
Raytheon Hawker 700	51' 5"	17' 7"	50' 9"
Raytheon Hawker 800	51' 5"	17' 6"	51' 7"

Rearwin

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
185 Skyranger	34'	6.7'	21.9'
3000 Junior	36'	7.6'	21.11'
6000M Speedster	32'	6.8'	22.2'
8135 Cloudster	34.2'	7.4'	21.6'
8500 Sportster	35'	6.9'	22.3'

Remos

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
G-3 LSA	32.4'	5.6'	21.5'
GX	30.6'	7.5'	21.3'
GXClub	30.7'	7.6'	21.3'
GXiS	30.7'	7.6'	21.8'
GXNXT/GXnXES	30.7'	7.6'	21.3'

Republic

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
A-10A Thunderbolt	57.6'	14.8'	53.4'
F-105D Thuderchief	34.11.25'	19.8'	64.4.75'
F-84F Thunderstreak	33.7.25'	14.4.75'	43.4.75'
F-84G Thunderjet	36.5'	12.7'	38.1'
P-43A Lancer	36.1'	14.1'	28.6'
P-47D-30 Thunderbolt	40.9'	14.8'	36.1'
RC-3 Seabee	37.8'	9.7'	27.11'
XP-72	40.11'	16'	36.7'

Robinson helicopters

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
R22	25.2.4'	8.11'	28.8'
R44 Raven	33'	10.9'	38.3'
R66	33'	11.5'	29.6'

Rockwell

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
100 (Formerly Volair)	35' 0"	9' 4"	22' 6"
100 DARTER	35' 0"	9' 4"	22' 6"
100-180 LARK	35' 0"	10' 0"	24' 8"
114A GRAN TURISMO	32.9'	8.5'	25'
200B	30' 5"	8' 6"	24' 4"
200D	30' 6"	7' 4"	24' 4"
700	42' 5"	13' 4"	39' 6"
A-9A SPARROW	35' 0"	9' 4"	23' 6"
A-9B QUAIL	34' 9"	7' 8"	24' 0"
A9, B1 AG COMMANDER	35' 0"	8' 0"	24' 0"
COMMANDER 112	36'	8.5'	25.3'
COMMANDER 114TC	32.9'	8.5'	24.11'
COMMANDER 115	32.9'	8.5'	24.11'
COMMANDER 115TC	32.9'	8.5'	24.11'
Hawker 800	51' 5"	17' 6"	51' 7"
HH-65 DOLPHIN helicopter	?	12.8'	44.3'
JET COMMANDER 1121C	40' 1"	15' 9"	52' 3"
MODEL 100	35' 0"	9' 4"	22' 6"
MODEL 200	30' 6"	7' 4"	24' 4"
OV-10A BRONCO	40'	15.2'	41.7'
OV-10D	40'	15.2'	44'
P51 MUSTANG	37' 0"	13' 8"	32' 3"
SABERLINER	44' 8"	17' 3"	47' 2"
TURBO COMMANDER	46' 8"	14' 11"	44' 4"
XFV-12	28.5'	32.8'	43.9.6'

RotorWay helicopters

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
162F Exec	25'	8'	22'
A600	25'	2.6m8.5'	29.5'
Scorpion Too	24'	7.3.5'	20.3.5'

RotorWay International Helicopters

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
A600 (Kit)	25'	8.5'	29.5'

Rutan Aircraft

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
2000A Beechcraft Starship	54.47.5'	12.11'	46.1'
Long-EZ	26.1'	7.10'	16.10'
Model 202 Boomerang	36.8'	?	30.8'
Quickie	16.8'	4.5'	17.4'
VariEze	22.21'	?	14.2'
VariViggen	19'	6.2'	16.10'

Ryan

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
B-1 Brougham	42'	8.9'	27.9'
C-1 Foursome	39.3'	?	27,7'
FR-1 Fireball	40'	13.11'	32.4'
M-1	36'	?	24'
PT-22 Recruit	30.1'	7.2'	22.5'
S-C-W	37.6'	6.10'	25.4.5'
ST-A	29.11'	6.11'	21.5'
Super 260 Navion	33.5'	8.8'	27.6'
YO-51 Dragonfly	52'	11.1'	35.6'

SAAB

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
1T Triplane	18.5'	?	15.5'
2000	81' 3"	25' 4"	89' 6"
340	70' 5"	22' 11"	64' 9"
340B	70.4'	22.10.5'	64.8.75'
90 Scandia	91.10.5'	24.3.5'	69.10.5'
91A	34.9'	7.3'	25.7'
MFI-15 Safari	29'	8.6'	23'
MFI-17 Mushshak	29'	8.6.5'	22.11.5'
PAC Super Mushshak	29'	8'	23.5'

Sabreliner

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
CT-39A SABRELINER	44.5'	16'	43.9'
NA265"40" SABRELINER 8	44' 4"	16' 0"	43' 8"
SABRE 40A	44' 4"	16' 0"	43' 8"
SABRE 60	44' 7"	16' 0"	46' 11"
SABRE 65	50' 5"	16' 0"	46' 11"
Sabre 75	44' 5"	17' 3"	47' 2"
SABRE 75A	44' 5"	17' 3"	47' 0"
SABRELINER 65	50.6'	16'	46.11'
T-39 SABRELINER Trainer/Transporter	44.5'	16'	44'
T3k-1 / T-39D	44.6'	16'	44'

Safari Helicopters

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Safari 400 (kit)	26.4'	8.2'	33.5'

Schweizer Helicopters

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
S300 C	26.10'	8.9'	30.10'
S300 CBi	26.8'	7.2'	22.2'

Schweizer/Hughes helicopters

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
300C	26.10'	8.9'	30.10'
Model 333	27.6'	11'	31.2'
TH-55 Osage	25'	7.11'	28.11'

Scottish Aviation

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
120 Bulldog	33.2'	8.11.5'	23.3'
CC.1 Pioneer	49.9'	10.3'	34.4'
CC.Mk 2 Twin Pioneer	76.6'	12.3'	45.3'
Series 200 Jetstream	52'	17.5'	47.2'

Scout Aero Helicopters

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Scout	26.8'	8.6'	30.6'

Shark.Aero

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Shark UL	25.11'	8.3'	22.5'

Shorts

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
330	74' 8"	16' 3"	58' 1"
360-300	74.8'	23.7'	70.8'
C-23A Sherpa	74.9'	16.3'	58'
S.17 Kent Flying Boat	113'	28'	78.5'
S.23 Empire Flying Boat	114'	32'	88'
S.8 Calcutta Flying Boat	93'	23.9'	66.9'
SC.7 Skyvan 3	19.8'	15.1'	40.1'
Sunderland III Flying Boat	112.9.5'	32.10'	85.4'

SIAI- Marchetti

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
S-210	38.1.75'	10.11.25'	29'
S-211	27.8'	12.5.5'	30.6.5'
S.205-20R	35.7.5'	9.5.75'	26.3'
SF-260	26.11.75'	8.6'	23'
SM.1019A	36'	9.4.5'	27.11.5'

Sikorsky aircraft

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
S-38A Flying Boat	71.8'	13.10'	40.3'
S-43 Baby Clipper	86'	17.8'	51.2'

Sikorsky helicopters

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
CH-124 Sea King	62'	16.10'	54.9'
CH-53D Sea Stallion	72.2.8'	24.11'	88.6'
CH-54B Tarhe	72'	25.5'	88.6'
H-19C Chickasaw	53'	13.4'	42.4'
H-34 Choctaw	56'	15.11'	56.8.5'
HH-52A Seaguard	53'	16'	44.6.5'
MH-60 Jayhawk	53.8'	17'	64.10'
R-4B	38'	12.5'	33.8'
R-6	38'	?	47.11'
S-52	33'	8.8'	27.5'
S-61N Mk II	62'	17.6'	58.11'
S-64E Skycrane	72'	18.7'	70.3'
S-76C++	44'	14.6'	52.6'
S-92	56.4'	15.5'	56.2'

Slingsby

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
T-3A	34.9'	7.9'	24.10'
T-67 Firefly	34.9'	7.9'	24'
T67M200 Firefly	34.7'	7.5'	24.1'
Tipsy Nipper Mk.2	19.8'	6.2'	14.9'

Socata

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
180 GT	31.11'	9.2.25'	23.9'
GY-80-180 Horizon	31.9.75'	8.6'	21.9.5'
ST-10	31.9.75'	9.5.5'	23.3.5'
TB 10	32.25'	10.6'	25.5'
TB 20 / TB 21 Trinidad	32.5'	9.35'	25.29'
TB 30 Epsilon	25.11.75'	8.8.75'	24.10.75'
TB 9 Tampico	32.11'	9.11'	25.4'
TBM 700C2	41.7'	14.4'	34.11'
TBM 850	41.6'	14.3'	35'
TBM 900	42.10'	14.29'	35.22'
TBM 930	42'	14.3'	35.2'

Soloy

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
MKII Turbine 206	36'	10.2'	30.4'
Soloy 206	36'	10.2'	30.4'

Sonex

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
JSX-2 SubSonex jet	18'	?	16.6'

Sorrell

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Guppy SNS-2	21.3'	5.2'	15.3'
Hiperbipe SNS-7	22.10'	5.10.75'	20.10'
Hiperlight SNS-8	22'	5.4'	15.6'

Spartan

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
12W Executive	39'	8'	27'
7W Executive	39'	8'	26.10'
C2-60	40'	?	22.5'
NP-1	33.9'	8.4'	24.3'

Spectrum Very Light Jet

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
S-33 Independence	43.3'	10.8'	45.11'

Sportcruiser

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
CZAW Sportcruiser	28.3'	7.7'	21.9'

Stampe-Vertongen

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
RSV 26/180	30.9'	8.10'	23.5'
RSV.26/100	30.8'	8.11'	23.3'
SV.4B	27.6'	9.1'	22.4'
SV.5 Tornado	34.6'	10'	26.4'

Stearman

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
C3B	35'	9'	24'
M-2 Speedmail	46'	11.1'	30.2'
Model 4-E	38'	10.2'	26.4'
Model 75	32.2'	9.8'	24.9'
PT-17	32.2'	9.8'	24.9'
YPT-9B Cloudboy	32'	9.7'	24.8'

Steen Aero Lab

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Firebolt	24'	7.7'	21.3'
Steen Skybolt D	24'	7'	19'

StingSport

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
S3	29.9'	6.3'	20.3'
S4	29.9'	6.3'	20.3'
TL-2000 Sting S4	29.9'	6.6'	21.1.6'
TL-96 Star	30.2'	7.1'	21.4'

Stinson

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
108-1	34' 0"	7' 6"	25' 3"
108-3	34' 0"	7' 6"	25' 3"
HW75	34'	6.6'	22.2'
L-1A Vigilant	50.11'	10.2'	34.3'
L-5 Sentinel	34'	8.11.5'	24.1'
L-9B	34'	6.6'	22.2'
Model 105 Voyager	34'	6.6'	22.2'
Model 108 Voyager	33.11'	6.10'	24.6'
Model 108 Voyager 150	33.11'	6.10'	24.6'
Model 108-3 Station Wagon	34'	6.10'	24.6'
SM-1F	46.8'	?	32'
SM-2AC Junior	41.8'	8.3'	29'

Stits

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
SA-11A Playmate	Folding wing	6.9'	18.4'
SA-3A Playboy	22.2'	6.4'	17.4'
SA-7 Skycoupe	24.4'	6.3'	17.9'

Stolp

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Acro-Sport 1 (Starduster)	19.7'	6'	17.5'
Acro-Sport 2 (Starduster)	21.7'	6.7'	18.9'
Acroduster 1	19'	?	15.8'
SA-500 Starlet	25'	6.8'	17'
Starduster Too	24'	7.3'	20.7'

Supermarine

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Seafang 32	35'	12.6.5'	34.1'
Seafire LF Mk III	36.10'	11.5'	30.2.5'
Spiteful XIV	35'	13.5'	32.11'
Spitfire Mk VB	36.10'	11.5'	29.11'

Swearingen

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
C-26A	46.3'	16.8'	42.2'
MERLIN II, A	45' 11"	16' 4"	40' 1"
MERLIN II, B	45' 11"	16' 4"	40' 1"
MERLIN III, A	46' 3"	16' 10"	42' 2"
Merlin III, A (Prior to A Hgt. 16' 7")	46' 3"	16' 10"	42' 2"
MERLIN III, B	46' 3"	16' 10"	42' 2"
MERLIN III, C	46' 3"	16' 10"	42' 2"
MERLIN IV, A	57' 0"	16' 8"	59' 4"
MERLIN IV, C	57' 0"	16' 8"	59' 4"
METRO II	57' 0"	16' 8"	59' 4"
METRO III	57'	16.8'	59.4'
Metro, II (Prior '79 Hgt. 16' 10")	46' 3"	16' 8"	59' 4"
SA226-T, Merlin III, Merlin IIB	46.3'	16.10'	42.2'

Swift

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
GC-1A	29.4'	6.2'	19.7'
GC-1B	29' 4"	6' 2"	20' 10"

Symphony

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
OMF 100	35'	9.25'	22.8'
SA-160	35'	9.3'	22.10'

Taylorcraft

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Auster V	36'	8'	22.5'
BC-12D	36'	7'	22'
E-2 CUB	35.2'	6.6'	22.6'
F-19 SPORTSMAN 100	36' 0"	6' 6"	22' 0"
F-21	36' 0"	6' 6"	22' 3"
L-2A	35.5'	6.8'	22.9'
L-2A GRASSHOPPER	35.5'	6.8'	22.9'
LBT-1	35'	?	25.2'
MODEL 20 RANCH WAGON	34.8'	7.2'	24.4'
MODEL B	36'	6.8'	22'
MODEL BC-65 & BCS-65	36'	6.10'	22'

Team Tango

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Foxtrot 4	32'	7.25'	24.8'
Tango Tango 2	26'	6.75'	20.7'

Tecnam

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Astore	28.5'	7.7'	23'
P-Jet	28.4'	8.5'	27.13'
P2002 Sierra	29.6'	7.6'	21.7'
P2004 Bravo	27.6'	8.6'	21.8'
P2006T	37.5'	9.4'	28.6'
P2008	28.10'	8.1'	22.9'
P2010	33.10'	8.8'	26.2'
P2012 Traveller	45.9'	14.4'	38.6'
P92 Eaglet US-LSA	28.5'	8.2'	21.6.5'
P92 Echo Super	28.6'	8.3'	20.11'
P92 JS	28.5'	8.2'	21'
P96 Golf 80	27.7'	7.6'	21'

Temco

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
D-16	33.4'	9.6'	27.2'

Thorp

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
S-18	20.10'	5.1'	18.10'
T-211 Sky Skooter	25'	6.1'	18.2'

Vans

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
RV-1	20'	?	18'
RV-10	31.9'	8.8'	24.5'
RV-12	26.9'	8.4'	19.11'
RV-3	19.11'	5'	19'
RV-6	23'	5.3'	20.2'
RV-7	25'	5.10'	20.4'
RV-8	24'	5.7'	21'
RV-9A	28'	7.10'	20.5'

Varga

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
2150A KACHINA	30' 0"	7' 0"	21' 0"
MODEL 2180	30' 0"	7' 0"	21' 0"

Velocity Aircraft

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
SE	29.4'	7.9'	19'
SE-RG 10-360	29.4'	7.9'	19'
TXL, XL, XL-5	31'	7.9'	20'
V-Twin	34.10'	7.10'	?
XL-RG	31'	8.5'	20'

Vulcanair

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
A-Viator	39.37'	11.91'	37'
AP 68 TP Spartacus	39.37'	11.98'	32.48'
P.68C	39.4.5'	11.1.75'	31.4'
V1.0	32.10'	9.1'	23.9'

Vultee

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
BT-13A Valiant	42'	11.6'	28.10'
P-66 Vanguard	35.10'	9.4'	28.5'
YA-19	50'	10'	37.10'

Waco

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
AVN-8 / N Series	34.9'	8.6'	27.7'
GXE 10	30.7'	9'	23.6'
RBA / A Series	29.6'	8.8'	21'
SRE / E Series	34.9'	8.8'	27.10'
UPF-7 / F Series	30'	8.5'	23.1'
VKS-7F / S Series	33.3'	8.6'	25.3'
YMC-5C	30'	8.6'	23.10'
YMF / YMF-5	30'	8.6'	23.1'
ZQC-6 Custom Cab	35'	8.8'	26.8'

Wassmer

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
WA-40A	32.9.5'	9.5'	26.6.5'
WA-54 Atlantic	30.10'	7.5'	24.7.25'
WA-80 Piranha	30.10'	6.11'	24.7'

Weatherly

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
201A	39'	7.11'	26.7'
620 A	47' 0"	8' 2"	27' 3"
620 BTG	46.8'	9.6'	29.8'

Westwind

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
1124A Westwind II	44.9.5'	15.9.5'	52.3'

White Lightning Aircraft Corp.

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
WLAC-1	27.8'	?	23.4'

Wing Derringer

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
D-1	29' 2"	8' 0"	23' 0"

Wren

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
Wren 460	35.10'	9'	27.4'

X-Air

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
"H" Hanuman	33'	7.7'	19.9'
X-Air "S"	32.2'	8.4'	18.6'

YAK (Yakovlev)

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
AIR-6	39.8'	?	25.7'
UT-1 with M-11Ye	23.11'	7.8'	18.10'
UT-2	33.5.5'	9.10'	23.5.5'
UT-3 2MV6A	49.3'	?	35.6'

Zenair

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
AMD Zodiac XL	27'	6.5'	20'
CH 100	22'	6.6'	19.6'
CH 150	20.2'	5'	20.3'
Ch 640	31.6'	7.4'	23'
CH 701	27'	8.7'	20.11'
CH 801	27'	?	24.5'
CH-200	23'	6.11'	20.6'
CH-300	26.7'	6.10'	22.6'
Cricket MC-15	16.1'	?	12.10'
Z 37A	28'	?	?

Zenith

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
CH650	27'	6.5'	20'
CH701	27'	6.2'	20.11'
CH750	29.10'	9.2'	21.10'
CH750 Cruzer	29.9'	9.2'	23.3'

Zlin

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
22 D	34.9'	6.5'	23.9.5'
Z 37A	40.1.25'	9.6'	28'
Z 42	29.10.75'	8.10'	23.2.25'
Z 43	32'	9.6.5'	25.5'
Z-50L	28.1.75'	6.1.25'	21.8.75'
Z-526-F	34.9'	6.9'	26.3'
Z-726	32.5'	6.9'	26.2'
Z-XII	33'	?	25.6'

Zodiac

AIRCRAFT MODEL	WINGSPAN	HEIGHT	LENGTH
CH601 XL	27'	6.5'	20'
CH650	27'	6.5'	20'

Seaplane Hydraulic Hangar Doors in Alaska
